INTRODUCTION

Accessibility systems are a critical part of modern public infrastructure. Whether in metro stations, government buildings, malls, hospitals, or outdoor walkways, tactile indicators guide visually impaired pedestrians safely through complex routes, entrances, ramps, and crossings. The UAE has some of the strictest accessibility standards in the region, requiring durable, high‑visibility, and long‑lasting tactile solutions.

Stainless Steel Tactile Warning Studs and Stainless Steel Tactile Guiding Strips, manufactured in marine‑grade SS316, represent the highest standard of tactile flooring systems used across Dubai, Abu Dhabi, and major UAE projects. Designed to comply with Dubai Universal Design Code, Abu Dhabi Accessibility Standards (UPC), RTA tactile layout guidelines, and ISO 23599, these tactile indicators ensure full compliance for public infrastructure, commercial developments, and government facilities.

This combined post covers both products in one comprehensive guide — their specifications, applications, installation methods, compliance requirements, and why they are trusted across the UAE.

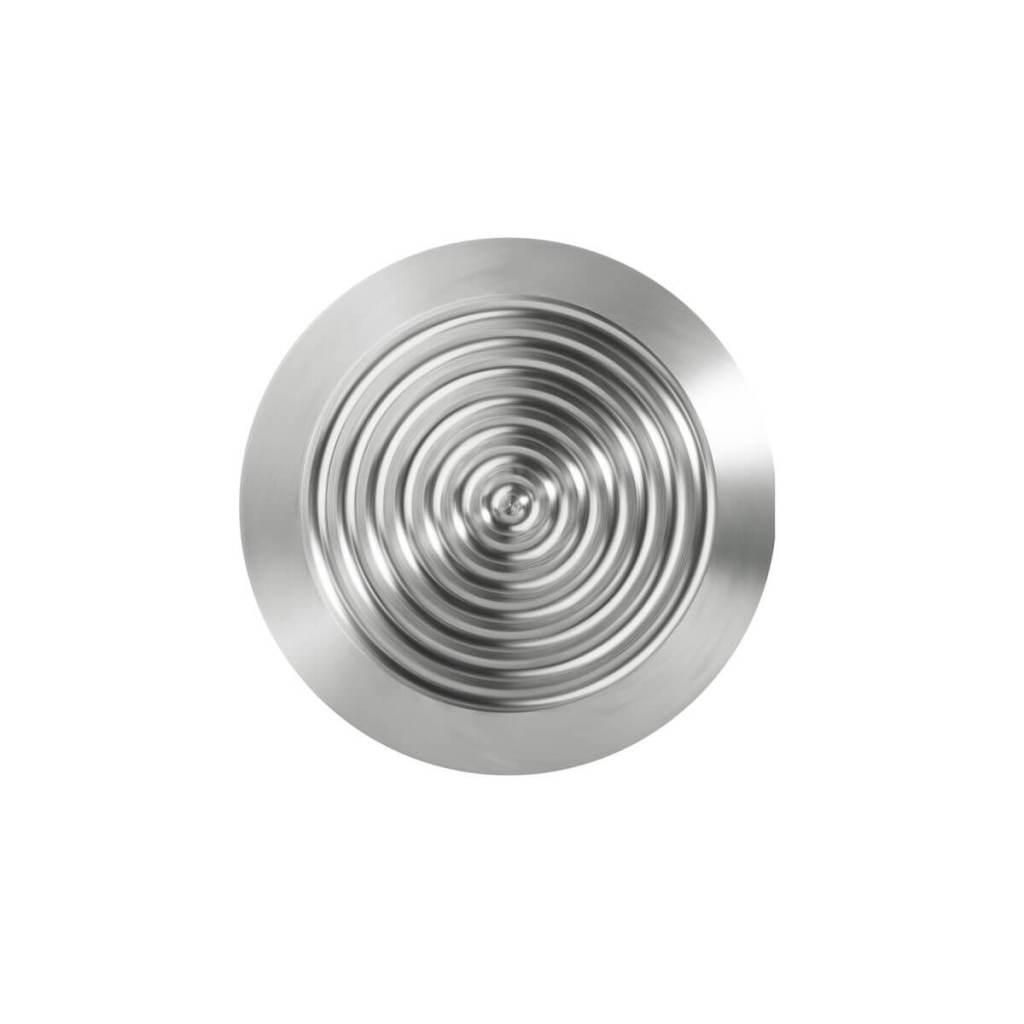

SECTION 1 — STAINLESS STEEL TACTILE WARNING STUDS (SS316)

Detectable Warning Indicators for Public Safety

Tactile warning studs are used to alert visually impaired pedestrians of hazards, transitions, or decision points. They create a detectable warning surface that can be felt underfoot or with a cane, providing essential safety cues in public environments.

Manufactured from marine‑grade SS316 stainless steel, these studs are engineered for:

Heavy pedestrian traffic
Outdoor weather exposure
Long‑term commercial use
High slip resistance
Architectural aesthetics

They are available in pin‑type for mechanical fixing and 3M industrial self‑adhesive for fast installation on smooth indoor surfaces.

Key Features — Tactile Warning Studs

Material: SS316 marine‑grade stainless steel
Fixing Options: Pin‑type or 3M self‑adhesive
Finish Options: Brushed, mirror, matte, anti‑slip grooved
Standards: Dubai Universal Design Code, Abu Dhabi UPC, RTA tactile layout
Durability: Corrosion‑resistant, UV‑stable, heavy‑duty
Custom Options: Brass, copper, bronze, powder‑coated colors, custom diameters
Slip Resistance: R11–R13 depending on finish
Installation Surfaces: Concrete, marble, granite, terrazzo, tiles

Technical Specifications — Tactile Studs

Specification	Details
Material	SS316 stainless steel (standard)
Optional Materials	Brass, copper, bronze, aluminum
Diameter	UAE standard, custom sizes available
Height	Dubai/Abu Dhabi standards
Pin Length	Mechanical fixing
Adhesive Option	3M industrial‑grade self‑adhesive
Surface Finish	Brushed / mirror / anti‑slip grooved
Slip Resistance	R11–R13
Compliance	Dubai Universal Design Code, Abu Dhabi UPC, ISO 23599

Applications — Tactile Warning Studs

Used in locations requiring hazard awareness:

Metro stations and transport hubs
Government buildings and courts
Shopping malls and retail centers
Hospitals and clinics
Schools and universities
Outdoor walkways and plazas
Ramps, staircases, and building entrances
Parking areas and pedestrian crossings

Installation Guide — Tactile Studs

Pin‑Type Installation

Drill holes according to the stud layout template
Clean the substrate with alcohol or acetone
Apply epoxy adhesive into each hole
Insert studs firmly and align
Allow curing for 12–24 hours

3M Self‑Adhesive Installation

Clean and dry the surface thoroughly
Peel the 3M backing
Press studs firmly into position
Avoid moisture for 24 hours

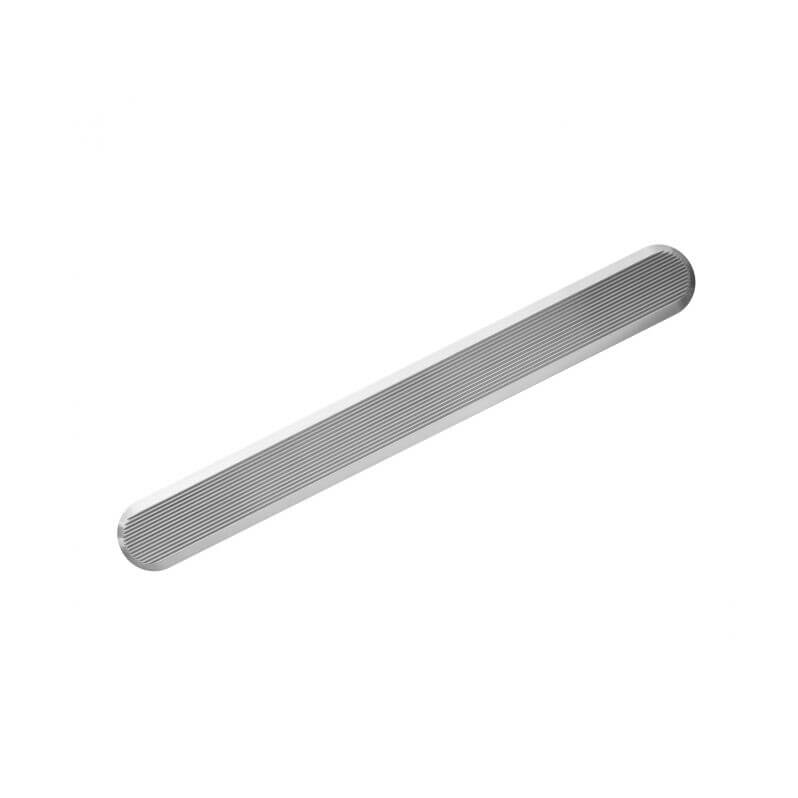

SECTION 2 — STAINLESS STEEL TACTILE GUIDING STRIPS (SS316)

Directional Guidance for Safe Navigation

Tactile guiding strips create continuous directional pathways that help visually impaired pedestrians navigate safely through corridors, walkways, metro stations, and building entrances. They provide linear guidance that complements tactile warning studs.

Manufactured from SS316 stainless steel, these strips offer:

High slip resistance
Long‑term durability
Architectural aesthetics
Compliance with UAE accessibility codes

Available in pin‑type and 3M adhesive versions, they are suitable for both indoor and outdoor installations.

Key Features — Tactile Guiding Strips

Material: SS316 marine‑grade stainless steel
Fixing Options: Pin‑type or 3M self‑adhesive
Finish Options: Brushed, mirror, matte, anti‑slip grooved
Standards: Dubai Universal Design Code, Abu Dhabi UPC, RTA tactile layout
Durability: Corrosion‑resistant, UV‑stable, heavy‑duty
Custom Options: Brass, copper, bronze, powder‑coated colors, custom lengths and widths
Slip Resistance: R11–R13
Installation Surfaces: Concrete, marble, granite, terrazzo, tiles

Technical Specifications — Tactile Guiding Strips

Specification	Details
Material	SS316 stainless steel (standard)
Optional Materials	Brass, copper, bronze, aluminum
Length	UAE standard, custom lengths available
Width	UAE standard, custom available
Height	Dubai/Abu Dhabi standards
Pin Length	Mechanical fixing
Adhesive Option	3M industrial‑grade self‑adhesive
Surface Finish	Brushed / mirror / anti‑slip grooved
Slip Resistance	R11–R13
Compliance	Dubai Universal Design Code, Abu Dhabi UPC, ISO 23599

Applications — Tactile Guiding Strips

Used for directional guidance in:

Malls and retail centers
Metro stations and transport hubs
Government buildings and courts
Hospitals and clinics
Schools and universities
Outdoor walkways and plazas
Corridors, lobbies, and building entrances
RTA pedestrian routes and public walkways

Installation Guide — Tactile Guiding Strips

Pin‑Type Installation

Mark the layout using a tactile strip template
Drill holes according to pin spacing
Clean the substrate with alcohol or acetone
Apply epoxy adhesive into each hole
Insert strips firmly and align
Allow curing for 12–24 hours

3M Self‑Adhesive Installation

Clean and dry the surface thoroughly
Peel the 3M backing
Press strips firmly into position
Avoid moisture for 24 hours

SECTION 3 — COMPLIANCE & UAE STANDARDS

Both tactile studs and guiding strips meet or exceed:

Dubai Universal Design Code
Abu Dhabi Accessibility Standards (UPC)
RTA tactile layout guidelines
ISO 23599 – Tactile Walking Surface Indicators
UAE Fire & Life Safety Code

This ensures full compliance for:

Government projects
Public infrastructure
Commercial developments
Transport hubs
Accessibility upgrades

SECTION 4 — MAJOR UAE PROJECTS USING THESE PRODUCTS

These tactile systems have been supplied and installed across major UAE projects, including:

Dubai Courts – Manara Mall Branch
RTA pedestrian walkways and crossings
Government service centers (Dubai & Abu Dhabi)
Shopping malls and retail complexes
Hospital and clinic accessibility upgrades
Private developments and villa accessibility enhancements

Their proven performance makes them a trusted choice for consultants, architects, and contractors.

SECTION 5 — WHY CHOOSE OUR SS316 TACTILE SYSTEMS

1. Stock Available in Dubai

Immediate availability for urgent projects.

2. Fast Delivery Across UAE

Reliable supply chain for contractors.

3. Installation Service Available

Professional installation teams.

4. Custom Manufacturing

Brass, copper, bronze, powder‑coated colors, custom sizes.

5. Premium SS316 Marine‑Grade Steel

Maximum durability and corrosion resistance.

6. Government‑Trusted

Used in major UAE public infrastructure projects.

CONCLUSION

Stainless Steel Tactile Warning Studs and Tactile Guiding Strips are essential components of modern accessibility systems in the UAE. Manufactured in SS316 and compliant with Dubai and Abu Dhabi accessibility standards, these tactile indicators provide durable, safe, and visually premium solutions for guiding visually impaired pedestrians.

Whether used in metro stations, malls, government buildings, hospitals, or outdoor walkways, these tactile systems deliver long‑term performance, architectural quality, and full regulatory compliance — making them the preferred choice for consultants, architects, and contractors across the UAE.
