Stainless Steel Tactile Stud SS316 – 25×5×30 mm (R3, 3‑Groove Top)
This stainless steel tactile stud is a premium, high‑precision indicator designed for guiding visually impaired pedestrians across indoor and outdoor environments. Manufactured from SUS316 stainless steel, it offers exceptional corrosion resistance, long‑term durability, and a clean architectural appearance suitable for high‑traffic public spaces across the UAE.

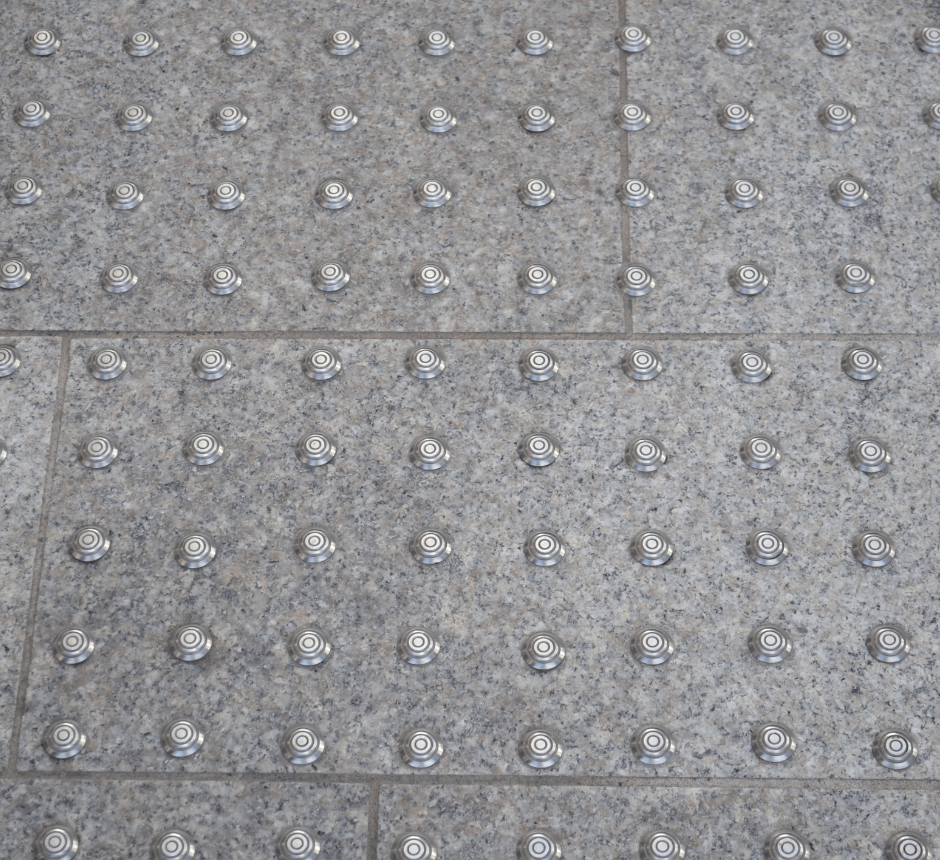

The stud features a 25 mm diameter, 5 mm height, and a 30 mm pin, making it fully compatible with UAE tactile‑indicator layouts used in malls, government facilities, metro stations, and commercial developments. The three concentric anti‑slip grooves on the top surface provide enhanced traction and tactile feedback, ensuring compliance with accessibility and safety requirements.
This model is produced with tight tolerances and precision machining, ensuring consistent installation results and a premium finish across large‑scale projects.
Key Features
- Material: SUS316 stainless steel
- Top Design: 3 anti‑slip concentric grooves
- Fixing Type: 30 mm pin for mechanical fixing
- Finish: Brushed stainless steel
- Durability: Anti‑rust, impact‑resistant, outdoor‑rated
- Precision: Manufactured with strict dimensional tolerances
- Usage: Indoor and outdoor tactile guidance systems
Technical Specifications
| Specification | Details |
|---|---|
| Diameter | 25 mm ±0.2 |
| Height | 5 mm ±0.2 |
| Pin Length | 30 mm |
| Pin Diameter | 10 mm |
| Material | SUS316 stainless steel |
| Top Surface | 3‑groove anti‑slip pattern |
| Radius | R3 top curvature |
| Installation | Mechanical fixing with epoxy |
| Application | Tactile guidance, hazard marking, accessibility compliance |
Applications
- Metro stations and transport hubs
- Government buildings and courts
- Shopping malls and retail centers
- Hospitals and clinics
- Schools and universities
- Outdoor walkways and plazas
- Ramps, staircases, and building entrances
- RTA pedestrian routes and public walkways
Installation Guide (Pin Type)
- Drill holes according to the stud’s pin diameter
- Clean the substrate using alcohol or acetone
- Apply epoxy adhesive into each drilled hole
- Insert studs firmly and align
- Allow curing for 12–24 hours before opening to traffic
Compliance & Standards
- Dubai Universal Design Code
- Abu Dhabi Accessibility Standards
- ISO 23599 tactile walking surface indicators
- UAE Fire & Life Safety Code
Major UAE Projects Using This Product
This tactile stud model has been supplied and installed across multiple UAE projects, including:
- Dubai Courts – Manara Mall Branch
- RTA pedestrian walkways and directional routes
- Government service centers in Dubai and Abu Dhabi
- Shopping malls and commercial developments
- Hospital accessibility upgrades
- Private developments and villa accessibility enhancements
Why Choose Our SS316 Tactile Studs
- Stock available in Dubai
- Premium SUS316 stainless steel
- Precision‑machined with strict tolerances
- Anti‑rust and long‑life performance
- Trusted by government and private‑sector clients
- Consistent quality for large‑scale installations
