Description

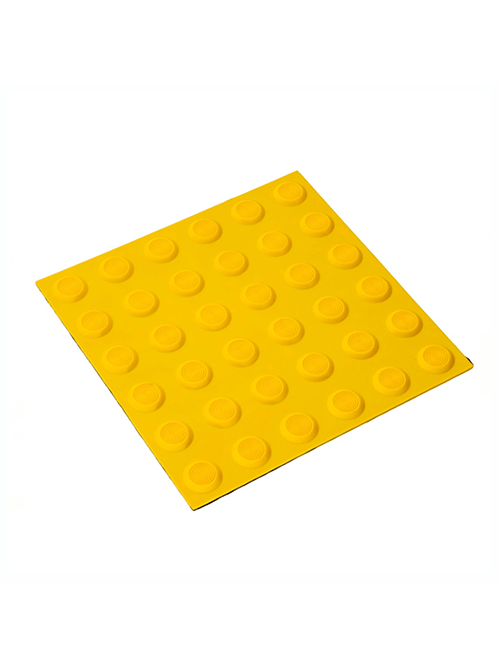

Polyurethane Tactile Pads – Self‑Adhesive or Non‑Adhesive (Studs & Lines)
Polyurethane tactile pads are a durable, flexible, and high‑visibility solution for guiding visually impaired pedestrians in both indoor and outdoor environments. Manufactured using Bayer Desmopan high‑tech polyurethane, these pads deliver exceptional UV resistance, long‑term color stability, and high slip‑resistance performance suitable for UAE climate conditions.
Available in 300×300 mm and 400×400 mm modular tiles, these tactile pads come in two formats:
- Warning Studs (Type B) – raised domes for hazard identification
- Directional Lines (Type C) – raised bars for pathway guidance
Each tile is available in self‑adhesive form for fast installation or non‑adhesive for epoxy‑bonded applications. The modular square format allows endless layout configurations and easy cutting for curved or irregular surfaces.
These tactile pads comply with international safety standards and are widely used in malls, government buildings, metro stations, hospitals, and public walkways across Dubai and Abu Dhabi.
Key Features
- Material: Bayer Desmopan polyurethane
- Formats: Warning studs (Type B) and directional lines (Type C)
- Sizes: 300×300 mm and 400×400 mm
- Fixing Options: Self‑adhesive or non‑adhesive
- UV‑resistant and lead‑free
- 10‑year manufacturer warranty
- Easy to cut for custom layouts
- High slip‑resistance ratings (P5, C, R11)
- Suitable for indoor and outdoor use
Technical Specifications
| Specification | Details |
|---|---|
| Material | Polyurethane (PU), UV‑resistant |
| Brand Material | Bayer Desmopan |
| Tile Sizes | 300×300 mm, 400×400 mm |
| Thickness | 4–5 mm depending on model |
| Formats | Studs (Type B), Lines (Type C) |
| Fixing | Self‑adhesive or non‑adhesive |
| Color | Yellow (standard), custom colors on request |
| Slip Resistance | P5 (Wet Pendulum), C (Barefoot Ramp), R11 (Oil/Wet Ramp) |
| Fire Testing | AS/ISO 9239.1 compliant |
| Luminance | 65–66 LRV (wet/dry) |
| Warranty | 10 years |
Applications
- Metro stations and transport hubs
- Government buildings and courts
- Shopping malls and retail centers
- Hospitals and clinics
- Schools and universities
- Outdoor walkways and plazas
- Ramps, staircases, and building entrances
- RTA pedestrian routes and public walkways
Installation Guide
Self‑Adhesive
- Clean and dry the surface thoroughly
- Peel the backing
- Apply firm pressure across the tile
- Avoid moisture for 24 hours
Non‑Adhesive (Epoxy)
- Clean the substrate using alcohol or acetone
- Apply epoxy adhesive evenly
- Position the tile and press firmly
- Allow curing for 12–24 hours
Compliance & Standards
- Type B and Type C tactile classifications
- AS 4586 slip‑resistance standards
- AS/NZS 1428 luminance standards
- AS/ISO 9239.1 fire‑reaction standards
- Dubai Universal Design Code
- Abu Dhabi Accessibility Standards
Major UAE Projects Using PU Tactile Pads
These polyurethane tactile pads have been supplied and installed across multiple UAE projects, including:
- Dubai Courts – Manara Mall Branch
- RTA pedestrian walkways and directional routes
- Government service centers in Dubai and Abu Dhabi
- Shopping malls and commercial developments
- Hospital accessibility upgrades
- Private developments and villa accessibility enhancements
Why Choose Our PU Tactile Pads
- Stock available in Dubai
- Premium Bayer Desmopan polyurethane
- UV‑stable and long‑life performance
- Self‑adhesive or epoxy‑bonded options
- Modular and easy to cut
- Trusted by government and private‑sector clients
