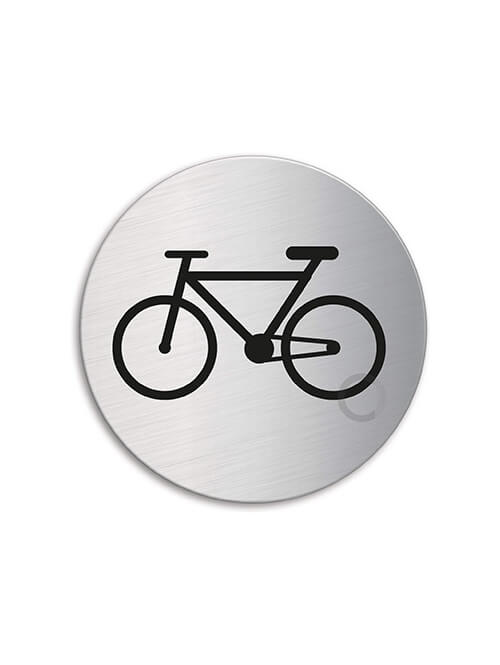

Stainless Steel Bicycle Tactile Stud SS316 – Pin Type (100 mm UAE Standard)
The stainless steel bicycle tactile stud is a premium demarcation marker designed to clearly identify bicycle lanes, shared paths, and pedestrian‑controlled zones. Manufactured from marine‑grade SS316 stainless steel, this stud delivers long‑term durability, corrosion resistance, and a modern architectural appearance suitable for both indoor and outdoor environments across the UAE.
With a 100 mm diameter, 10 mm raised profile, and pin‑type mechanical fixing, this stud provides excellent visibility for cyclists, pedestrians, and oncoming vehicles. The satin‑brushed finish enhances visibility under sunlight and artificial lighting, while maintaining a clean, contemporary look.
The stud is available in two versions:
- Plain top (standard)
- Laser‑engraved bicycle symbol with optional colored vinyl backing for enhanced contrast
This makes it ideal for bike tracks, shared pathways, parking areas, and urban mobility projects.
Key Features
- Material: SS316 marine‑grade stainless steel
- Fixing Type: Pin‑type mechanical fixing
- Finish: Satin brushed
- Visibility: 100 mm diameter for high visibility
- Profile: 10 mm raised dome for tactile and visual guidance
- Customization: Laser‑engraved bicycle symbol with optional colored vinyl
- Durability: Anti‑rust, impact‑resistant, outdoor‑rated
- Warranty: 10‑year manufacturer warranty
Technical Specifications
| Specification | Details |
|---|---|
| Diameter | 100 mm |
| Height Above Surface | 10 mm |
| Dome Angle | 150° |
| Material | Stainless Steel 316L |
| Finish | Satin brushed |
| Pin Diameter | 6 mm |
| Pin Length | 22 mm |
| Plate Thickness | 1.0 mm ±0.2 |
| Pin Spacing | 50 mm (dual‑pin design) |
| Installation | Mechanical fixing with epoxy |
| Custom Options | Laser‑engraved symbol, colored vinyl backing |
Applications
- Bicycle lanes and cycling tracks
- Shared pedestrian–cyclist pathways
- Parking areas and mobility zones
- Urban planning and smart‑city projects
- Mall and community cycling routes
- Government and municipal cycling infrastructure
- Safety demarcation for bike‑friendly developments
Installation Guide (Pin Type)
- Drill holes according to pin spacing (50 mm center‑to‑center)
- Clean the substrate using alcohol or acetone
- Apply epoxy adhesive into each drilled hole
- Insert the stud firmly and align the bicycle symbol (if applicable)
- Allow curing for 12–24 hours before opening to traffic
Compliance & Standards
- UAE cycling‑infrastructure requirements
- Dubai Universal Design Code (for tactile hazard zones)
- Abu Dhabi Accessibility Standards
- ISO 23599 tactile walking surface indicators
- Floor Safety Services (Australia) manufacturing standards
Major UAE Projects Using This Product
This bicycle tactile stud has been supplied and installed across multiple UAE projects, including:
- Dubai Courts – Manara Mall Branch
- RTA pedestrian and cycling pathways
- Government service centers in Dubai and Abu Dhabi
- Shopping malls and mixed‑use developments
- Hospital and clinic accessibility upgrades
- Private villa and community cycling routes
Why Choose Our Bicycle Tactile Studs
- Stock available in Dubai
- Exclusive UAE distributor for Floor Safety Services (Australia)
- 10‑year warranty
- SS316L for maximum corrosion resistance
- Custom engraving and color options
- Trusted by government and private‑sector clients
