Description

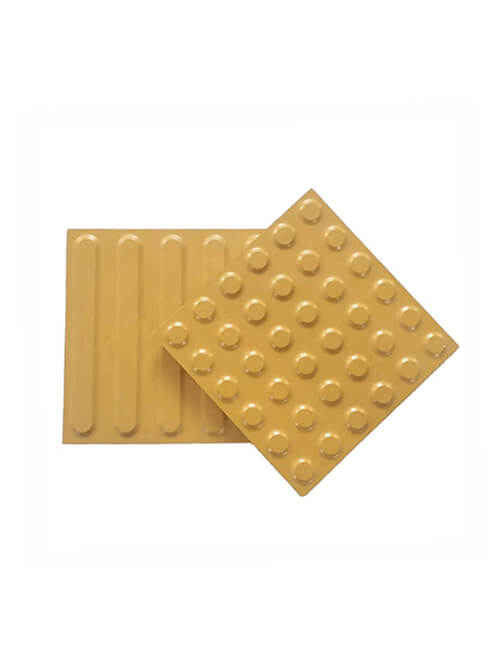

Ceramic, Porcelain & Concrete Tactile Tiles – 300×300 mm & 400×400 mm (Studs & Lines)
Ceramic, porcelain, and concrete tactile tiles provide long‑lasting, high‑visibility guidance for visually impaired pedestrians in both indoor and outdoor environments. These tiles are engineered for heavy‑duty UAE conditions, offering excellent slip resistance, color stability, and structural strength. Available in 300×300 mm and 400×400 mm formats, each tile comes in two functional designs:
- Warning Studs (Blister Type) – raised domes for hazard identification
- Directional Lines (Guiding Type) – raised bars for pathway guidance
Ceramic and porcelain tiles offer premium finish and color uniformity, while concrete tactile pavers provide maximum outdoor durability for high‑traffic public areas. All materials comply with UAE accessibility requirements and international performance standards.
Key Features
- Material Options: Ceramic, full‑body porcelain, or concrete
- Sizes: 300×300 mm and 400×400 mm
- Formats: Warning studs (blister) and directional lines
- Slip‑resistant surfaces for wet and dry conditions
- UV‑stable, anti‑fade, and impact‑resistant
- Suitable for indoor and outdoor applications
- Compliant with Dubai and Abu Dhabi accessibility standards
- Long‑life durability for public infrastructure
Technical Specifications – Ceramic & Porcelain
| Specification | 300×300 mm Porcelain | 400×400 mm Porcelain |
|---|---|---|
| Dimensions | 300×300×15 mm | 400×400×20 mm |
| Material | Full‑body porcelain | Full‑body porcelain |
| Water Absorption | ≤ 0.5% | ≤ 0.5% |
| Modulus of Rupture | ≥ 35 N/mm² | ≥ 35 N/mm² |
| Breaking Load | ≥ 1300 N | ≥ 1300 N |
| Density | 2200 kg/m³ | 2200 kg/m³ |
| Hardness | Mohs 8 (Topaz) | Mohs 8 (Topaz) |
| Coefficient of Friction | Wet ≥ 0.70 / Dry ≥ 0.90 | Wet ≥ 0.70 / Dry ≥ 0.90 |
| Acid Resistance | ≤ 2.0% | ≤ 2.0% |
| Finish | Non‑glazed, uniform color | Non‑glazed, uniform color |
| Warranty | 10 years | 10 years |

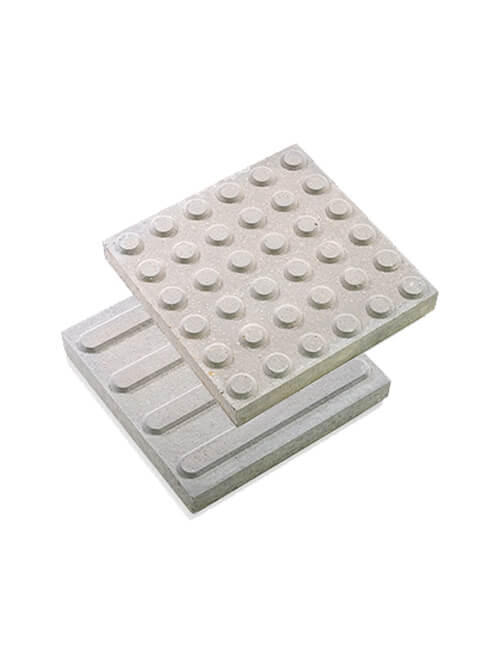

Technical Specifications – Concrete Tactile Pavers (Dubai RTA)
| Specification | Blister (Studs) | Directional (Lines) |
|---|---|---|
| Dimensions | 300×300 mm | 400×400 mm |
| Thickness Options | 40, 50, 60, 80 mm | 40, 50, 60, 80 mm |
| Weight | 8.64–17.28 kg | 13.6–30.72 kg |
| Finish Options | Normal, Shotblast, TG Stone Seal | Normal, Shotblast, TG Stone Seal |
| Application | Hazard zones | Pathway guidance |
Applications
- Metro stations and transport hubs
- Government buildings and courts
- Shopping malls and retail centers
- Hospitals and clinics
- Schools and universities
- Outdoor walkways and plazas
- Ramps, staircases, and building entrances
- RTA pedestrian routes and public walkways
Installation Guide
Ceramic & Porcelain
- Install on level concrete or tile substrate
- Apply tile adhesive suitable for heavy‑duty flooring
- Ensure full coverage under studs/lines
- Grout and seal as required
- Allow curing before pedestrian traffic
Concrete Pavers
- Install on sand‑cement bedding or mortar
- Compact and level the base
- Align tiles according to tactile layout
- Fill joints with sand or grout
- Seal if required (shotblast or TG Stone Seal options)
Compliance & Standards
- Dubai Universal Design Code
- Abu Dhabi Accessibility Standards
- BS EN 10545 (porcelain performance)
- ASTM C1028 slip‑resistance
- BS EN 1344 acid resistance
- RTA tactile paving specifications

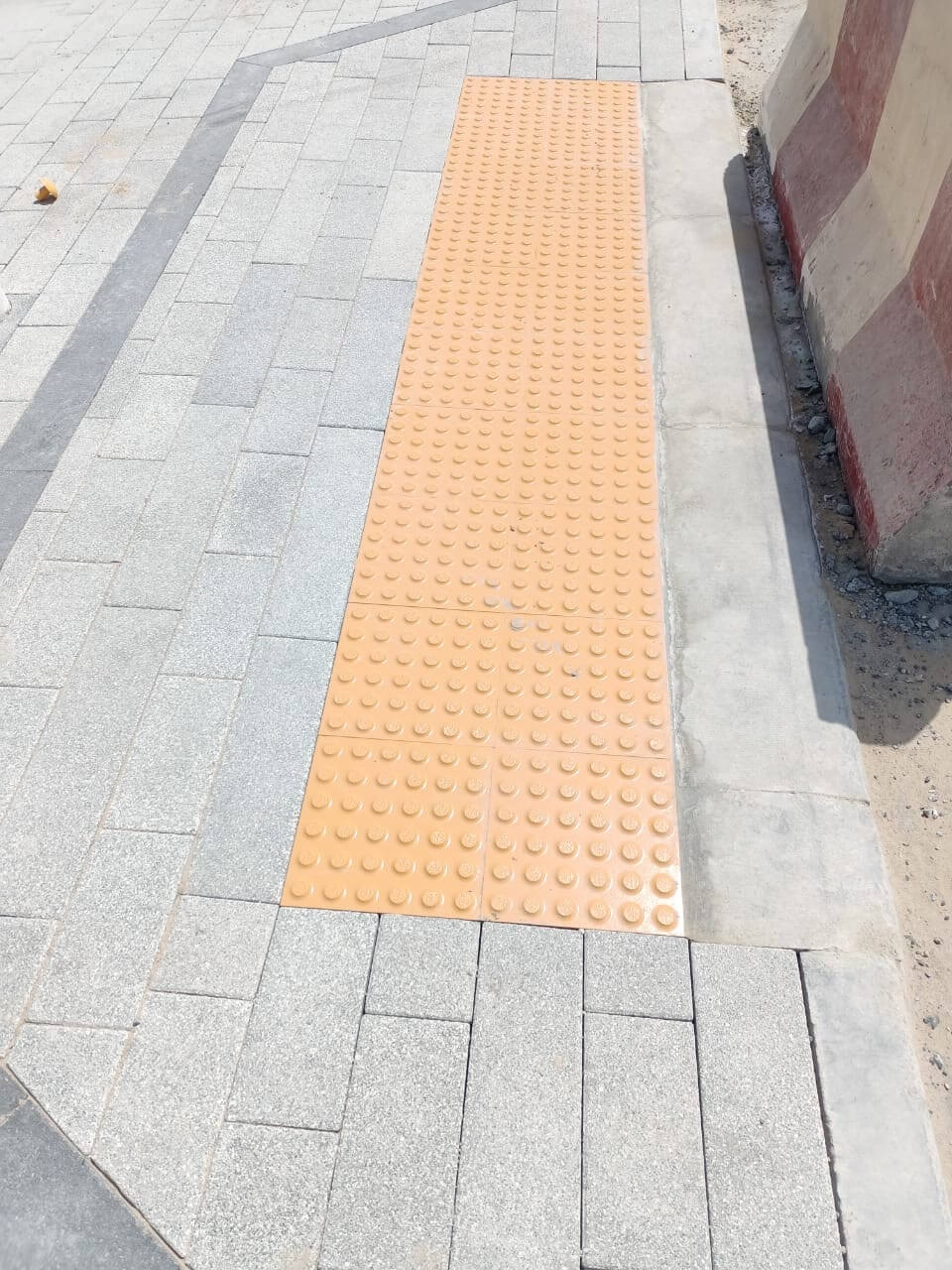

Major UAE Projects Using These Tiles
- Dubai Courts – Manara Mall Branch
- RTA pedestrian walkways and crossings
- Government service centers in Dubai and Abu Dhabi
- Shopping malls and commercial developments
- Hospital accessibility upgrades
- Private developments and villa accessibility enhancements
Why Choose Our Ceramic, Porcelain & Concrete Tactiles
- Stock available in Dubai
- Full‑body porcelain for maximum color stability
- Concrete pavers engineered for outdoor heavy traffic
- High slip‑resistance for wet and dry conditions
- Long‑life performance in UAE climate
- Trusted by government and private‑sector clients
