Description

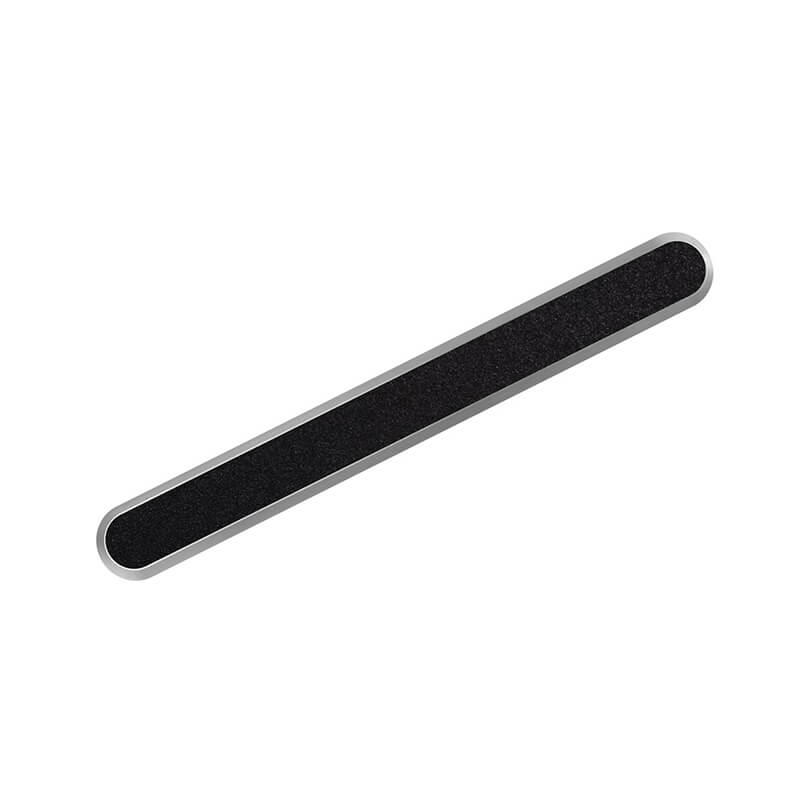

Stainless Steel Tactile Guiding Strip SS316 – Pin or 3M Adhesive
Stainless steel tactile guiding strips are the premium solution for creating continuous directional pathways for visually impaired pedestrians. Manufactured from marine‑grade SS316, these strips are engineered for long‑term durability, high slip resistance, and architectural aesthetics. They are available in pin‑type for mechanical fixing and 3M industrial adhesive for fast, clean installation on smooth indoor surfaces.
These guiding strips comply with the Dubai Universal Design Code, Abu Dhabi Accessibility Standards, and RTA tactile layout requirements, ensuring full compliance for public infrastructure, government facilities, and commercial developments. They are used to guide pedestrians safely through corridors, walkways, metro stations, building entrances, and complex indoor/outdoor routes.
Along with standard UAE sizes, we also manufacture custom tactile strips in brass, copper, bronze, and special finishes for architects, consultants, and bespoke design projects.
Key Features
- Material: SS316 marine‑grade stainless steel
- Fixing Options: Pin‑type or 3M self‑adhesive
- Finish Options: Brushed, mirror, matte, anti‑slip grooved
- Standards: Dubai Universal Design Code, Abu Dhabi UPC, RTA tactile layout
- Durability: Corrosion‑resistant, UV‑stable, heavy‑duty
- Custom Options: Brass, copper, bronze, powder‑coated colors, custom lengths and widths
Technical Specifications
| Specification | Details |
|---|---|
| Material | SS316 stainless steel (standard) |
| Optional Materials | Brass, copper, bronze, aluminum |
| Length | UAE standard, custom lengths available |
| Width | UAE standard, custom available |
| Height | Dubai/Abu Dhabi standards |
| Pin Length | Mechanical fixing |
| Adhesive Option | 3M industrial‑grade self‑adhesive |
| Surface Finish | Brushed / mirror / anti‑slip grooved |
| Slip Resistance | R11–R13 depending on finish |
| Installation Surfaces | Concrete, marble, granite, terrazzo, tiles |
| Compliance | Dubai Universal Design Code, Abu Dhabi UPC, ISO 23599 |
Applications
- Directional pathways in malls and retail centers
- Metro stations and transport hubs
- Government buildings and courts
- Hospitals and clinics
- Schools and universities
- Outdoor walkways and plazas
- Corridors, lobbies, and building entrances
- RTA pedestrian routes and public walkways

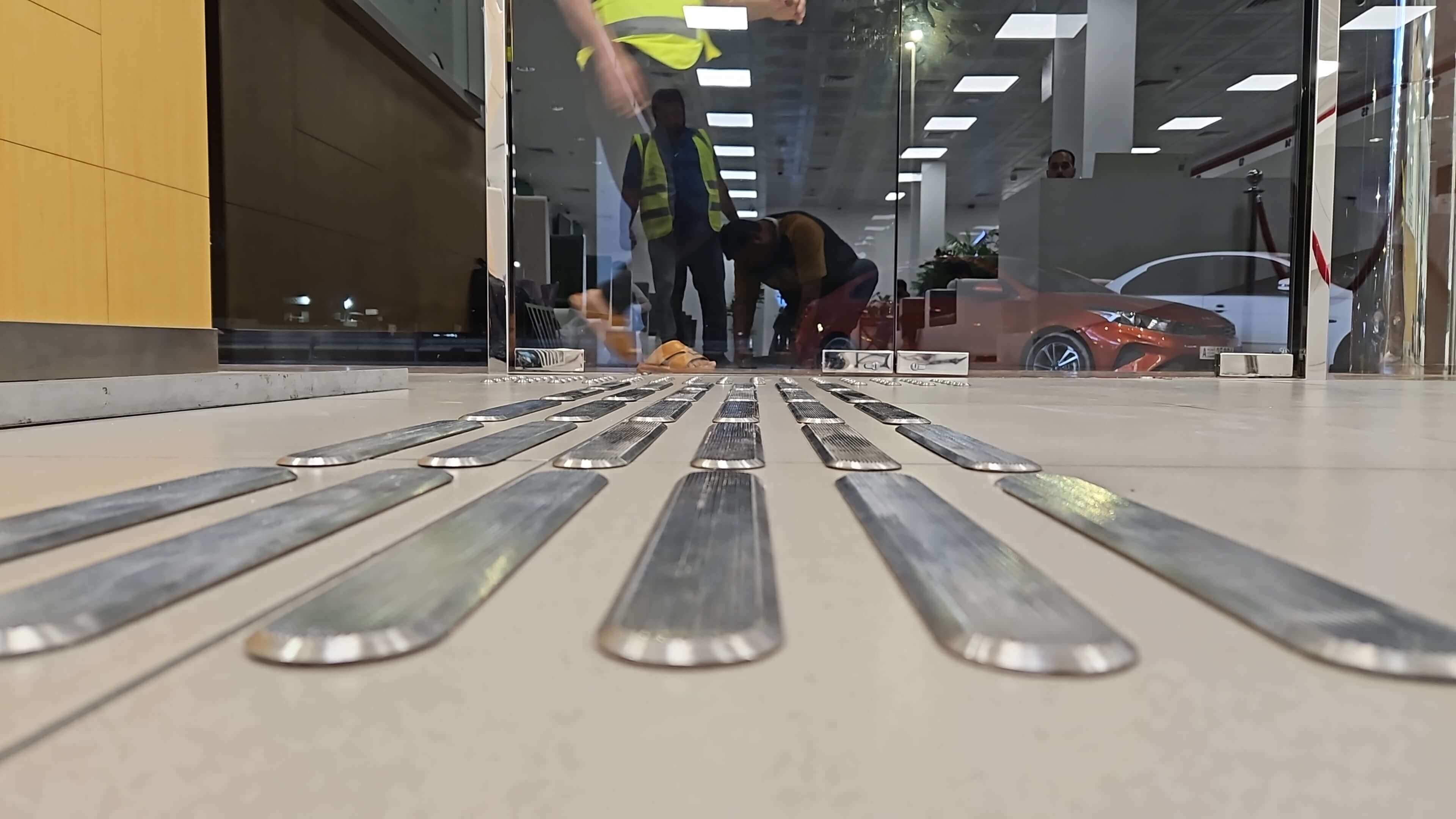

Installation Guide
Pin‑Type Installation
- Mark the layout using a tactile strip template
- Drill holes according to pin spacing
- Clean the substrate with alcohol or acetone
- Apply epoxy adhesive into each hole
- Insert strips firmly and align
- Allow curing for 12–24 hours
3M Self‑Adhesive Installation
- Clean and dry the surface thoroughly
- Peel the 3M backing
- Press strips firmly into position
- Avoid moisture for 24 hours
Compliance & Standards
These tactile guiding strips meet or exceed the following standards:
- Dubai Universal Design Code
- Abu Dhabi Accessibility Standards (UPC)
- RTA tactile layout guidelines
- ISO 23599 – Tactile Walking Surface Indicators
- UAE Fire & Life Safety Code
This ensures full compliance for government, commercial, and public‑infrastructure projects.

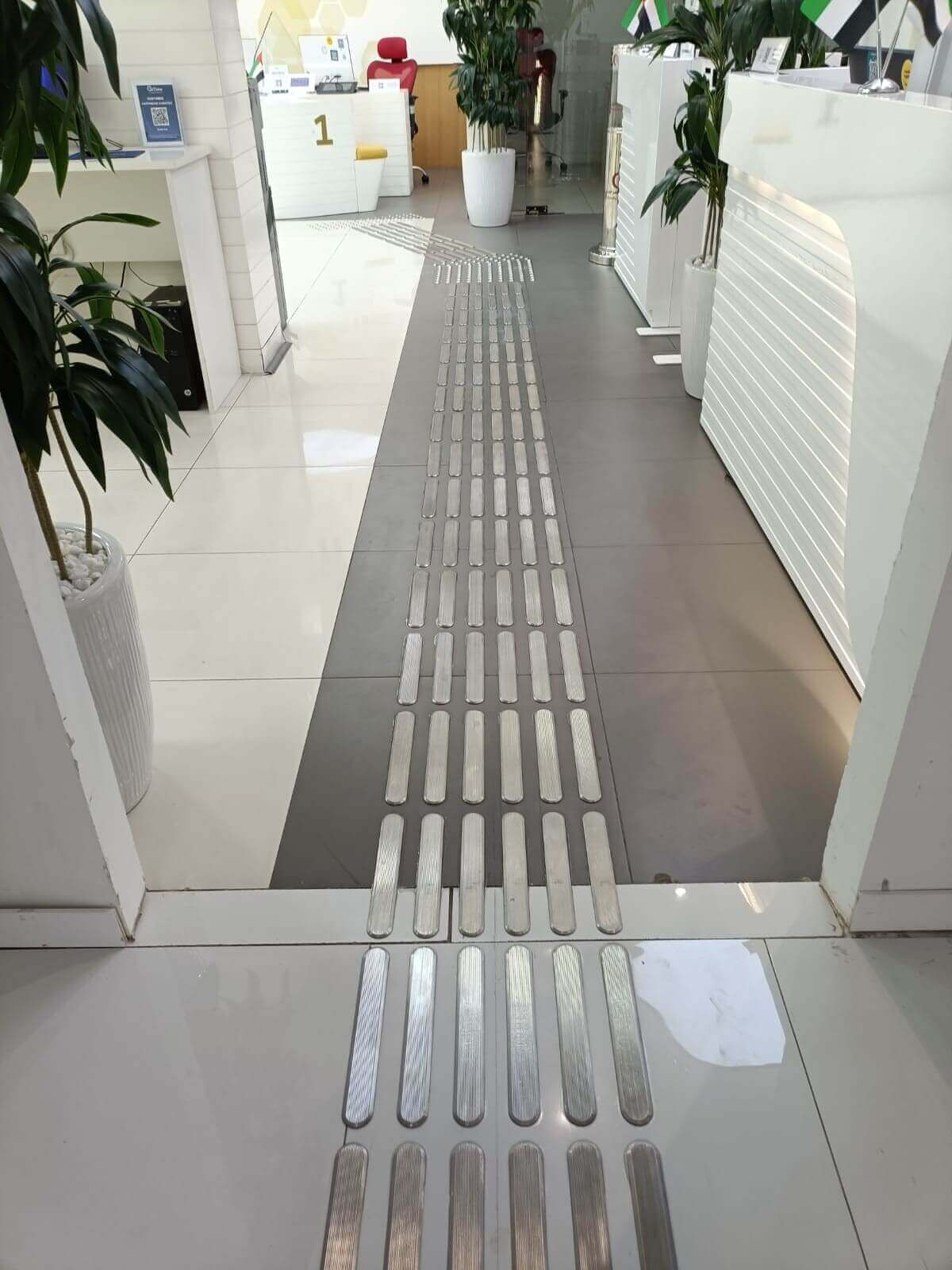

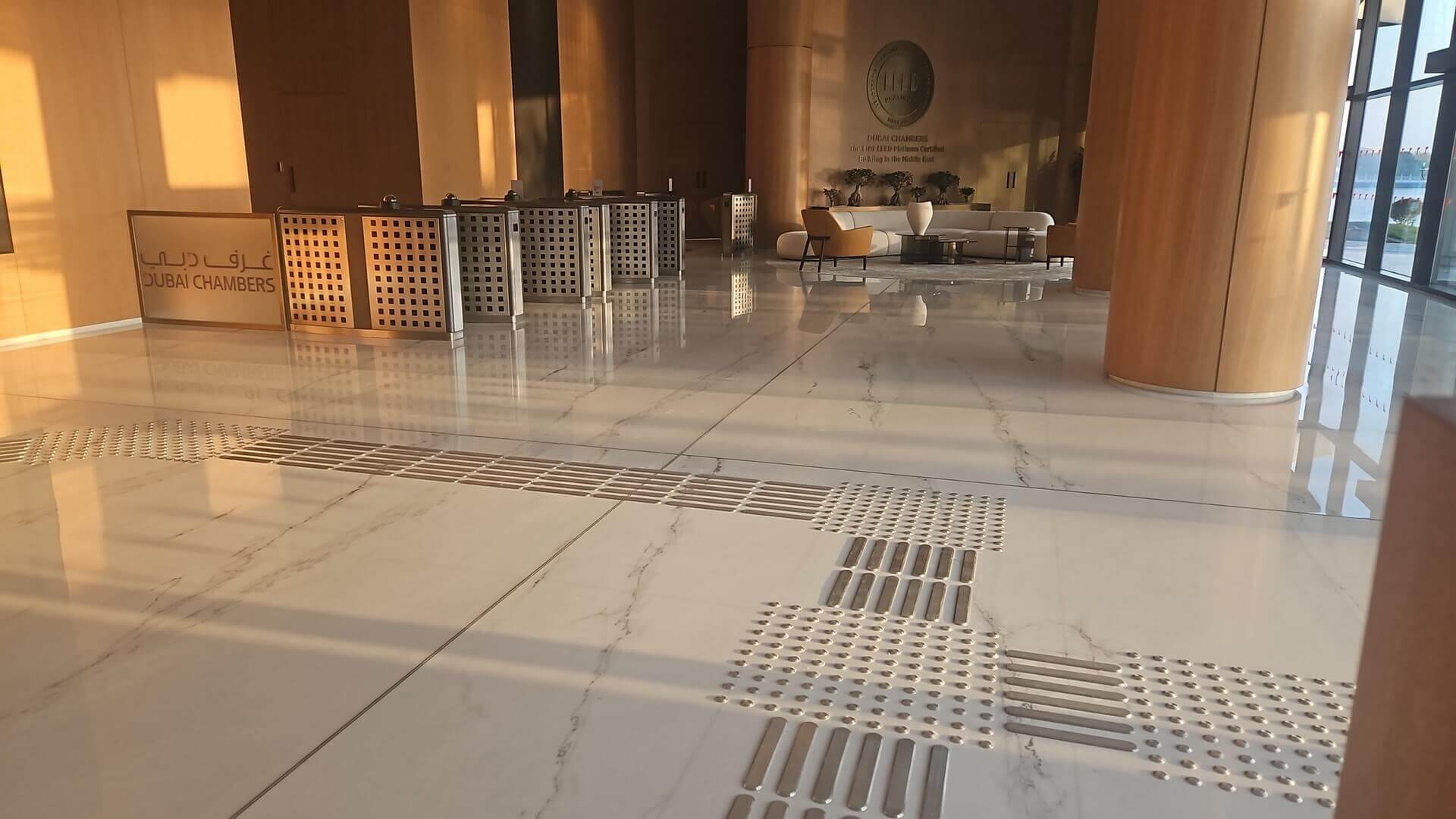

Major UAE Projects Using This Product
These tactile guiding strips have been supplied and installed in multiple high‑profile UAE projects, including:
- Dubai Courts – Manara Mall Branch
- RTA pedestrian walkways and directional routes
- Government service centers in Dubai and Abu Dhabi
- Shopping malls and retail complexes
- Hospital accessibility upgrades
- Private developments and villa accessibility enhancements
Why Choose Our Tactile Guiding Strips
- Stock available in Dubai
- Fast delivery across UAE
- Installation service available
- Custom manufacturing for architects and consultants
- Premium SS316 for long‑term durability
- Trusted by government and private sector clients
