Description

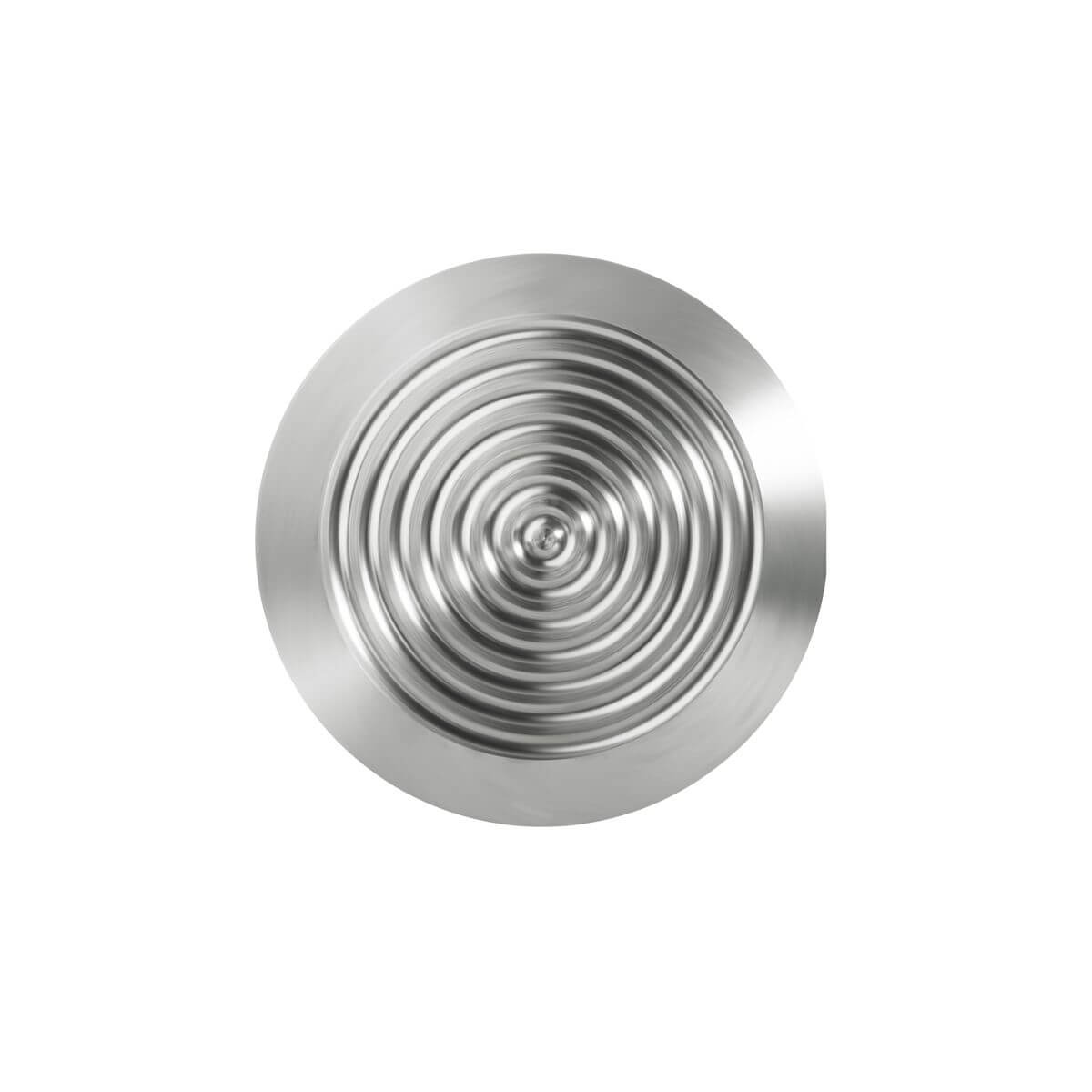

Tactile Studs SS316 – UAE Standard Detectable Warning Indicators
Stainless steel tactile studs are the most durable and visually premium solution for creating detectable warning surfaces in public and private spaces across the UAE. Manufactured from marine‑grade SS316, these studs are engineered to withstand heavy pedestrian traffic, outdoor weather conditions, and long‑term commercial use. They are available in pin‑type for mechanical fixing and 3M self‑adhesive for fast, clean installation on smooth indoor surfaces.
These tactile studs comply with Dubai Universal Design Code, Abu Dhabi Accessibility Standards, and RTA tactile layout requirements, ensuring full alignment with UAE safety and accessibility regulations. They are used to guide visually impaired pedestrians safely through walkways, ramps, staircases, crossings, and building entrances.
Along with standard UAE sizes, we also manufacture custom tactile studs in brass, copper, aluminum, and special finishes for architects, consultants, and bespoke design projects.
Key Features
- Material: SS316 marine‑grade stainless steel
- Fixing Options: Pin‑type or 3M self‑adhesive
- Finish Options: Brushed, mirror, matte, anti‑slip grooved
- Standards: Dubai Universal Design Code, Abu Dhabi UPC, RTA tactile layout
- Durability: Corrosion‑resistant, UV‑stable, heavy‑duty
- Custom Options: Brass, copper, bronze, powder‑coated colors, custom diameters
Technical Specifications
| Specification | Details |
|---|---|
| Material | SS316 stainless steel (standard) |
| Optional Materials | Brass, copper, bronze, aluminum |
| Diameter | UAE standard, custom sizes available |
| Height | Dubai/Abu Dhabi standards |
| Pin Length | Mechanical fixing |
| Adhesive Option | 3M industrial‑grade self‑adhesive |
| Surface Finish | Brushed / mirror / anti‑slip grooved |
| Slip Resistance | R11–R13 depending on finish |
| Installation Surfaces | Concrete, marble, granite, terrazzo, tiles |
| Compliance | Dubai Universal Design Code, Abu Dhabi UPC, ISO 23599 |
Applications
- Metro stations and transport hubs
- Government buildings and courts
- Shopping malls and retail centers
- Hospitals and clinics
- Schools and universities
- Outdoor walkways and plazas
- Ramps, staircases, and building entrances
- Parking areas and pedestrian crossings
Installation Guide

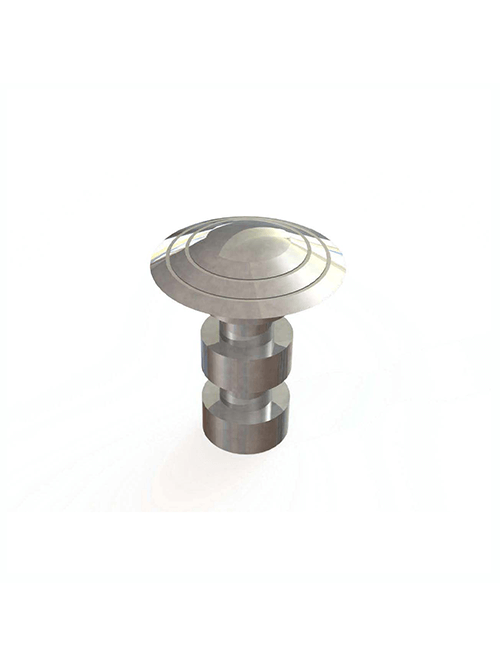

Pin‑Type Installation
- Drill holes according to the stud layout template
- Clean the substrate with alcohol or acetone
- Apply epoxy adhesive into each hole
- Insert studs firmly and align
- Allow curing for 12–24 hours
3M Self‑Adhesive Installation
- Clean and dry the surface thoroughly
- Peel the 3M backing
- Press studs firmly into position
- Avoid moisture for 24 hours
Compliance & Standards
These tactile studs meet or exceed the following standards:
- Dubai Universal Design Code
- Abu Dhabi Accessibility Standards (UPC)
- RTA tactile layout guidelines
- ISO 23599 – Tactile Walking Surface Indicators
- UAE Fire & Life Safety Code
This ensures full compliance for government, commercial, and public‑infrastructure projects.

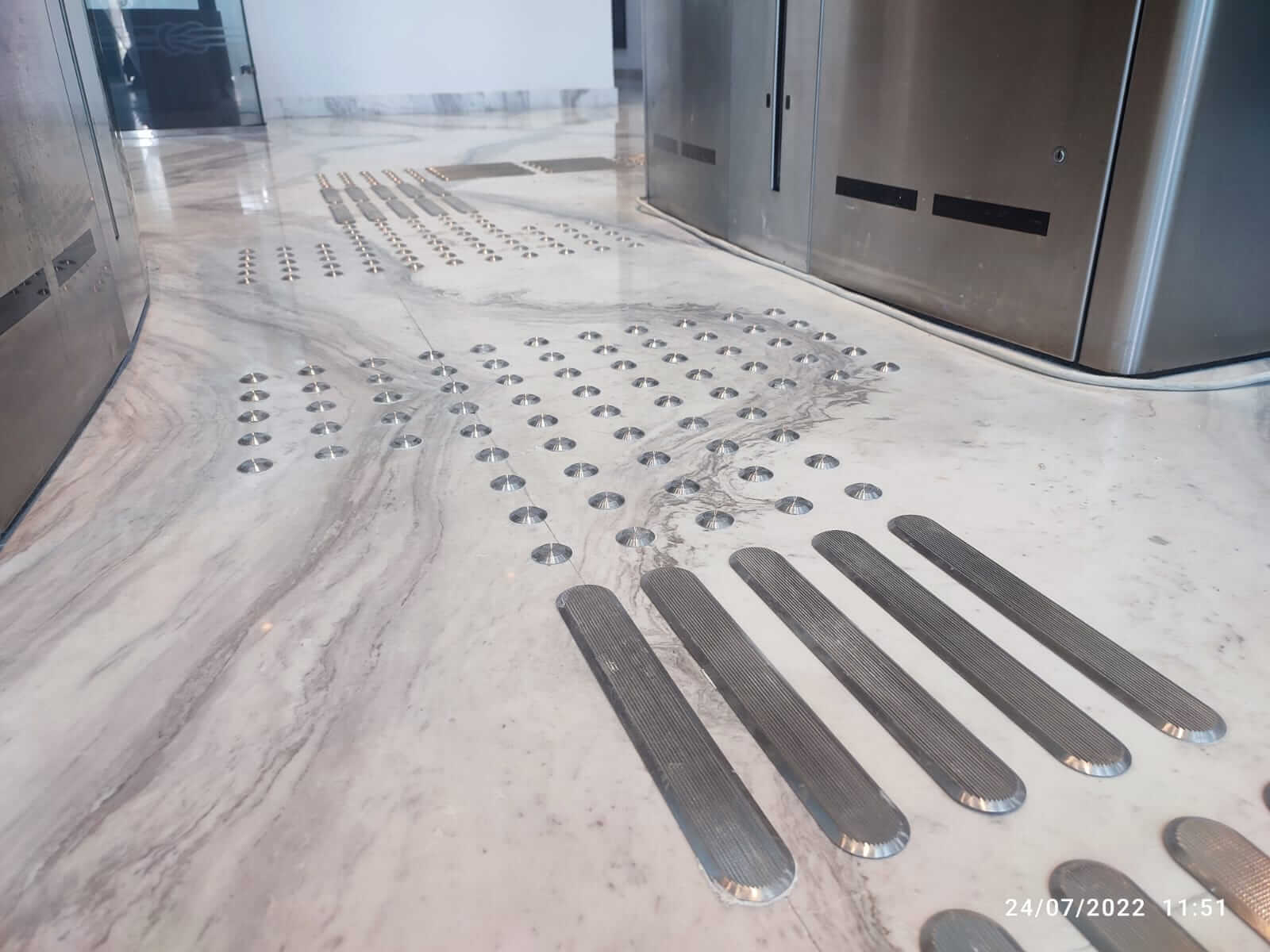

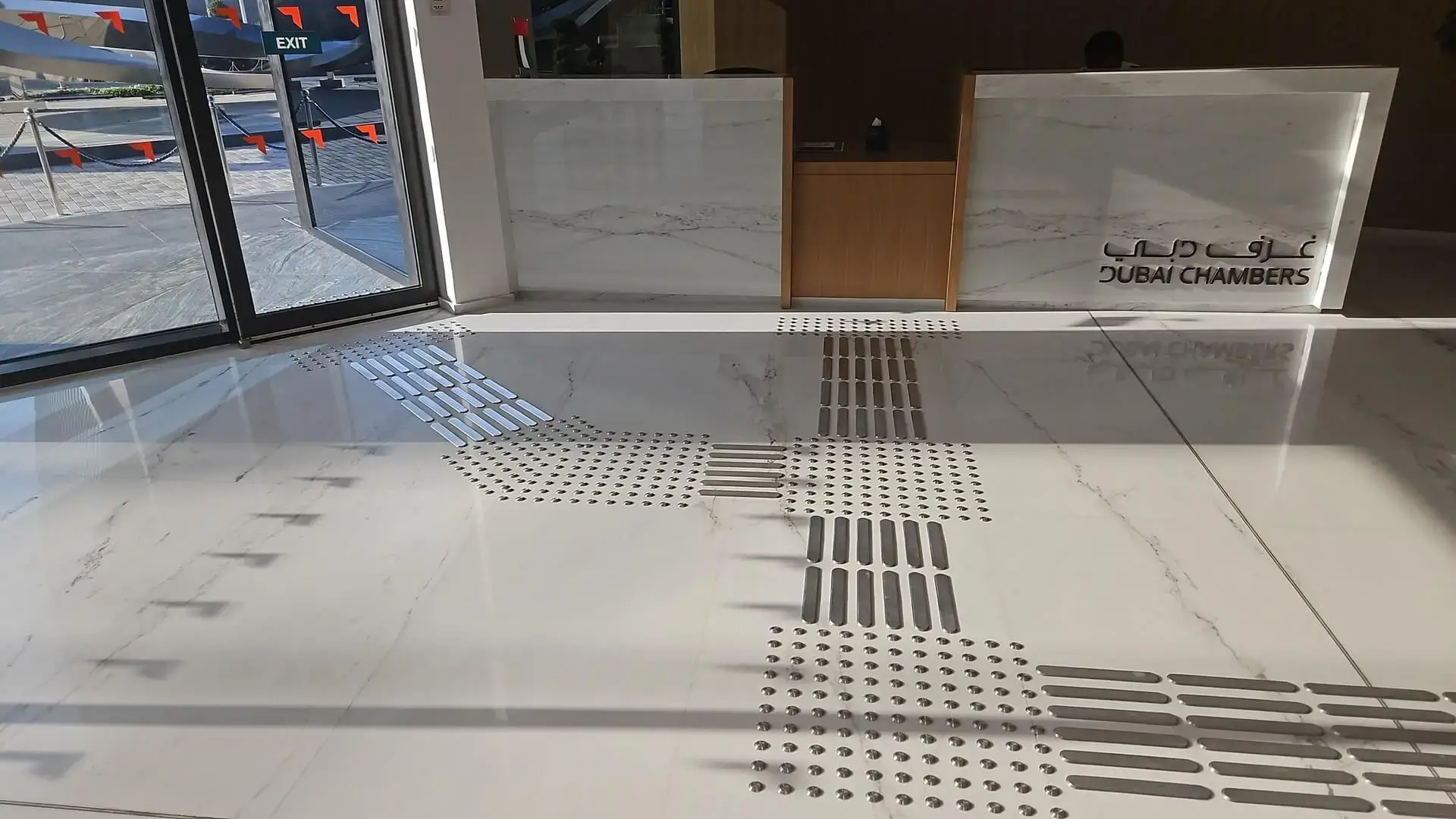

Major UAE Projects Using This Product
These tactile studs have been supplied and installed in multiple high‑profile UAE projects, including:
- Dubai Courts – Manara Mall Branch
- RTA pedestrian walkways and crossings
- Government service centers across Dubai and Abu Dhabi
- Shopping malls and retail complexes
- Hospital and clinic accessibility upgrades
- Private developments and villa accessibility enhancements
Why Choose Our Tactile Studs
- Stock available in Dubai
- Fast delivery across UAE
- Installation service available
- Custom manufacturing for architects and consultants
- Premium SS316 for long‑term durability
- Trusted by government and private sector clients
