Product Description

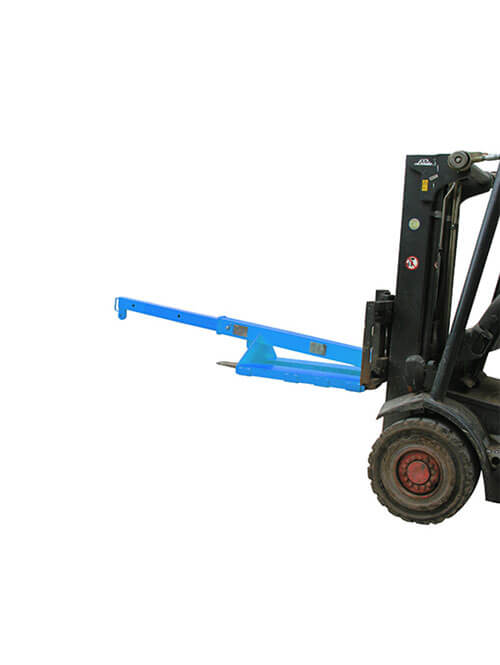

The Forklift Boom Swing is a versatile lifting attachment engineered to extend the reach and flexibility of your forklift. Designed specifically for hard‑to‑access slabs, it excels in environments where traditional lifting equipment cannot maneuver—such as closed‑top containers, narrow workshops, and compact factories.
The swing‑arm design offers five lockable positions, allowing operators to adjust the boom angle for precise slab handling. With an extendable length of up to 2.5 meters, it provides exceptional reach while maintaining stability and safety.
Constructed from high‑strength steel and tested for industrial performance, this boom delivers reliable lifting capacity across multiple extension points. The included load charts ensure safe operation at every angle and reach.
Key Features
- Swing‑arm design for hard‑to‑reach slab handling
- Ideal for unloading closed‑top containers
- Five lockable angle positions
- Extendable reach up to 2.5 m
- High‑strength steel construction
- Compact and efficient for small factories
- Clear load‑capacity charts for safe operation
- Compatible with most standard forklifts

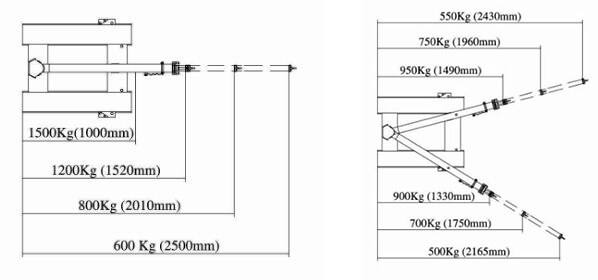

Load Capacity (Horizontal Extension)
(Based on the diagram you provided)
| Reach (mm) | Capacity (kg) |
|---|---|
| 1000 mm | 1500 kg |
| 1520 mm | 1200 kg |
| 2010 mm | 800 kg |
| 2500 mm | 600 kg |
Load Capacity (Angled Extension)
(From the angled‑arm diagram)
| Reach (mm) | Capacity (kg) |
|---|---|
| 1330 mm | 900 kg |
| 1490 mm | 950 kg |
| 1750 mm | 700 kg |
| 1960 mm | 750 kg |
| 2165 mm | 500 kg |
| 2430 mm | 550 kg |
Technical Specifications
(From the specification table you uploaded)
| Specification | Value |
|---|---|
| Length Range | 1520–2500 mm (59 7/8″ – 98 1/2″) |
| Width | 900 mm (35 1/2″) |
| Height | 390 mm (15 3/8″) |
| Max Load (Fully Extended) | 500 kg (1100 lbs) |
| Working Load Limit (W.L.L.) | 1500 kg (3300 lbs) |
| Net Weight | 125 kg (275 lbs) |
| Lock Positions | 5 |
| Power Source | Forklift attachment |
Applications
- Slab unloading from closed‑top containers
- Stone yard and factory slab handling
- Tight workshop environments
- Extended‑reach lifting
- Marble, granite, quartz, and porcelain slab movement
