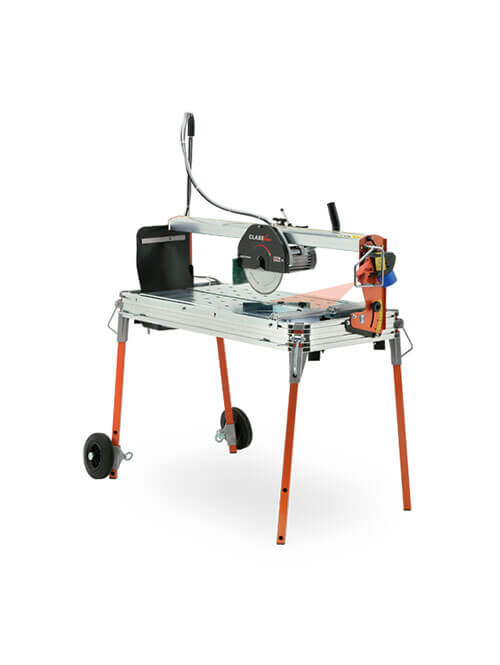

Description
BRIDGE
The rail is in extrusion of aluminium at high resistance to the torsional stress. It’s equipped with interchangeable stainless steel bearings-tracks. Absolute cutting precision.
CONTROL BOARD
The control board includes:
• Switch with release coil.
• Thermal protection.
• Laser instrument for the maximum cutting precision.
CARRIAGE
The carriage engine group slides with 8 ball-bearings on interchangeable stainless steel track.

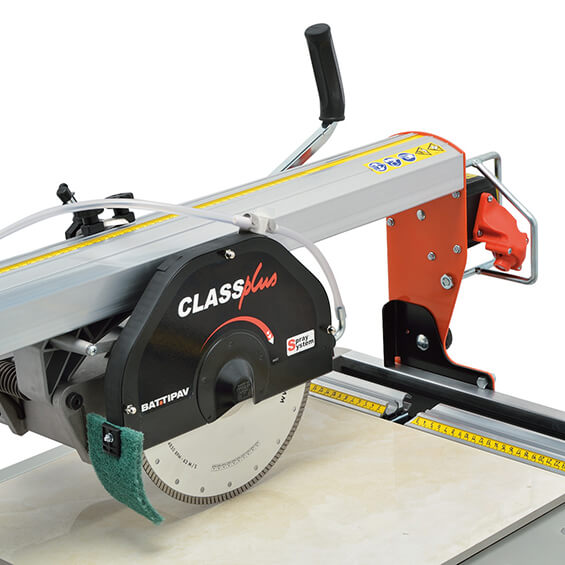

CUTTING HEAD
The cutting head is horizontally pivoted and can be locked at the intended height. It makes every kind of shape.
| MAX CUTTING LENGTH | 910 mm (1050 mm with H. max 42 mm) |
|---|---|
| SIZE TILE FOR DIAGONAL CUTTING | 645X645 mm (740×740 mm with H. max 42 mm) |
| MAX CUTTING THICKNESS | 65 mm |
| DIAMOND BLADE DIAMETER | Ø250 mm |
| TOOL HOLE | Ø25,4 mm |
| POWER ENGINE | 1,8Hp / 1,4Kw |
| LASER INSTRUMENT | Standard |
| ENGINE TYPE | SINGLE-PHASE 230V~50Hz |
| ROTATION SPEED | 2800rpm |
| SIDE BENCH DIMESION | 1084×523 mm |
| MACHINE’S DIMENSION | 1505 x 675 x H 1300mm |
| WEIGHT | 50 kg |
| THERMIC PROTECTION | 170°c |
| WATER PUMP | S0 |
| WATER TANK CAPACITY | Min. 18 / Max. 23 liters |
| SIDE TILE SUPPORT | Optional |
| LONG SLOT FOR SIDE TILE SUPPORT | Optional |
| TILE LOCK SYSTEM | Optional |
| EXTENSION SIDE BENCH | Optional |
| WHEELS | Standard |
| FENCE | Standard |
| MAX CUTTING DEPTH FOR 45° (JOLLY) CUT | 53 mm |
| MAX CUTTING DEPTH WITH 2 RUNS | 80mm |
