EXPERT 600 SAW BLOCK CUTTER

EXPERT 600 SAW BLOCK CUTTER

EXPERT 600 is a masonry saw ideal for the building sector.
Innovative design with high tech solutions, very precise, compact, light and strong, it’s suitable for cutting bricks, poroton blocks, marble blocks and all the different kind of materials for the building sector.
It makes cuts pushing the sliding working table and it is built to work with diamond disks Ø 600 mm.

Equipped with:
– Three phase engine 400V 50Hz 5,5Hp / 4Kw with thermal and amperometrical protection – Switch with release coil.
– Overheat protection with manual reset
– Sliding working table and tilting cutting head
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S3

Water cooled
Disk Ø 600 mm not included.

Product Documents

Information

STRUCTURE

Aluminium extrusion to get the maximum of rigidity and lightness at the same time.

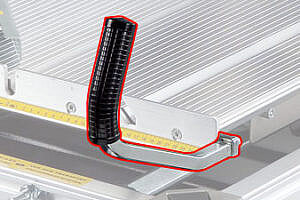

HANDLE ON THE WORKING TABLE

To get the maximum safe to the operator


TILTING CUTTING HEAD

Tilting cutting head for one greater rapidity and precision in the execution of particular cuts. It can be locked at the wished height.

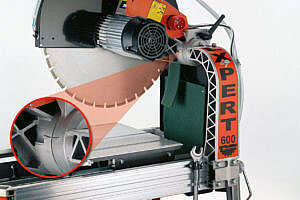

ALUMINIUM CUTTING HEAD

The cutting head and the arm are in die-casting aluminium to get the maximum of rigidity and lightness.
Quick reading indicator of the position for the cut in 2 RUNS.

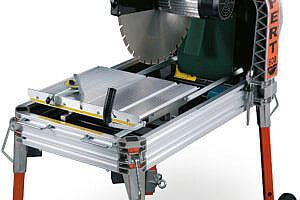

STRAIGHT CUTS

Cutting position with sliding carriage.

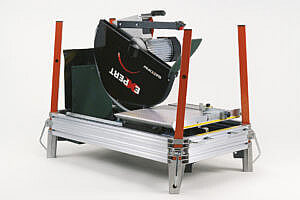

TRANSPORT

Built to reduce at the minimum the encumbrance during the carriage and above all the storage space.


ENGINE TYPE 3F – 400V~50/60Hz
DIAMOND BLADE DIAMETER Ø600 mm
LASER INSTRUMENT Optional

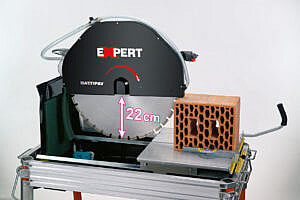

MAX CUTTING THICKNESS 220 mm
MAX CUTTING DEPTH WITH 2 RUNS 285 mm
TOOL HOLE Ø25,4 mm
MACHINE’S DIMENSION IN STOCK 80x120x103 cm
MAX CUTTING LENGHT 750 mm
POWER ENGINE 5,5Hp/4Kw, 8A
SIZE TILE FOR DIAGONAL CUTTING 412x412mm
ROTATION SPEED 1400/1700rpm
AMPEROMETRIC PROTECTION 10-16A
SIDE BENCH DIMESION 442x520mm
MACHINE’S DIMENSION 1180x770xH1530mm
WEIGHT 80 kg
THERMIC PROTECTION 160°c
WATER PUMP S3
WATER TANK CAPACITY Min. 19 / Max. 25 liters
WHEELS Optional
SRS PHASE INVERTER Optional
FENCE Standard
