In the world of modern construction and countertop manufacturing, where every second counts, precision and speed are the name of the game. Imagine having a tool that not only keeps up with the fast pace but also elevates your entire workflow—welcome to the cutting-edge world of the 4+1 Axis CNC Bridge Saw. This powerhouse of a machine a game-changer for anyone working with marble, granite, quartz, or any stone surface. With this machine in your arsenal, you’re not just keeping up—you’re staying ahead, delivering flawless results while boosting production like never before. Ready to take your stone-cutting to the next level? Let’s dive into what makes this machine a true industry must-have.

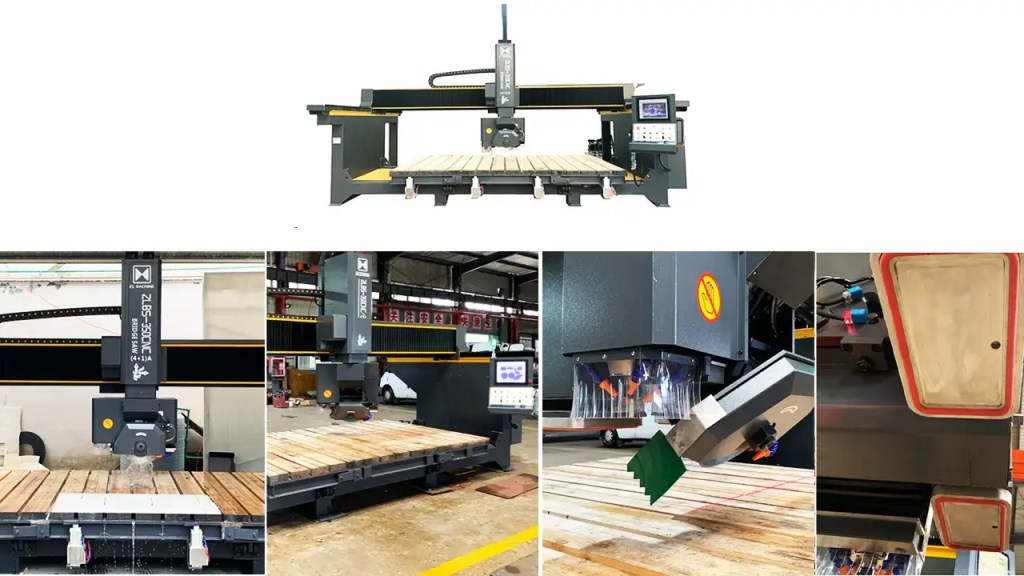

What is a 4+1 Axis CNC Bridge Saw?
The 4+1 Axis CNC Bridge Saw is a revolutionary piece of equipment that combines precision, efficiency, and ease of use. Equipped with advanced technology and smart programming, this machine makes cutting, chamfering, and processing stone materials an effortless task. Specifically designed for countertops and intricate designs, it is a preferred tool for professionals working with marble, granite, quartz, and even ceramic and sintered stone.
Key Features of the 4+1 Axis CNC Bridge Saw
- Advanced Camera Technology: This machine comes equipped with high-resolution cameras, enabling it to locate and display the exact shape and dimensions of the plate being processed. This minimizes the chances of error, ensuring precise cuts every time.
- Industrial Computer with Touchscreen: Operating the machine is simplified with an industrial-grade computer and a 17-inch color touchscreen interface. This allows users to manage operations with ease, controlling various functions of the saw directly from the screen.
- Powerful High-Speed Spindle Motor: With a 15 kW main motor and a 5.5 kW spindle motor, this machine is engineered to handle heavy-duty tasks. The milling cutter can process basin holes, faucet holes, and inner angles, making it suitable for both basic and complex tasks.
- Automatic Tool Setting Gauge: To further simplify the operation, the machine comes with an automatic tool-setting gauge. This helps ensure that blades are positioned and checked correctly before any processing begins.
- Vacuum Suction Assistance: When handling large stone slabs, efficiency is key. The machine includes vacuum-assisted suction cups on the backside that help separate plates, particularly useful when saw paths overlap during cutting.
- Built-in Drawing Library and File Import Support: The 4+1 Axis CNC Bridge Saw comes with a built-in drawing library for conventional shapes and allows for the import of DXF format files, giving users the flexibility to work with custom designs.
- 85-Degree Adjustable Worktable: Loading and unloading stone slabs have never been easier. The worktable can tilt up to 85 degrees, reducing the physical strain on operators and allowing for easy placement and removal of materials.
- Movable Protective Doors: Safety is always a priority in any operation. The machine is designed with optional protective doors that come with safety locks, ensuring that operators are protected during use.
A Step-by-Step Guide to Using the 4+1 Axis CNC Bridge Saw
One of the standout features of this machine is its ability to streamline the cutting process. Here’s how it works:
- Capture a Photo of the Plate: Using the integrated camera, the operator takes a photo of the stone plate.
- Upload a Layout Drawing: Once the photo is taken, the operator uploads a layout or drawing of the intended cut onto the photo of the plate.
- Initiate Processing: The machine’s program automatically generates a cutting sequence and path, optimizing it for efficiency. Before cutting begins, the program controls the cylinder to press the plate in place.
- Automatic Execution: The milling cutter takes over, processing holes and inner angles with precision. Once the cut is complete, the cylinder automatically withdraws, and the vacuum cups separate the plates for easy handling.
This intuitive process ensures high accuracy and minimizes errors, even for complex cuts such as polygons, circles, ovals, and L-shaped countertops.
Technical Specifications of the 4+1 Axis CNC Bridge Saw
Here are the key technical parameters for the machine:
- Worktable Size: 3600 x 2000 mm
- Maximum Processing Size: 3600 x 2000 x 70 mm
- Blade Diameter: 350 mm
- Main Motor Power: 15 kW
- Spindle Motor Power: 5.5 kW
- Total Power Consumption: 25 kW
- Suction Cup Lifting Capacity: 200 kg
- Water Consumption: 2 cubic meters/hour
- Total Weight: 4.6 tons
- Dimensions: 5750 x 3260 x 2500 mm (including camera height of 3800 mm)
Why Choose the 4+1 Axis CNC Bridge Saw?
The 4+1 Axis CNC Bridge Saw is a game-changer for professionals in the countertop and stone processing industries. Here’s why:
- Precision and Speed: The combination of advanced camera technology, high-speed motors, and an automatic tool-setting gauge ensures that every cut is accurate and efficient, significantly reducing production time.
- Versatility: Whether you’re working with marble, granite, quartz, or ceramic, this machine can handle a wide range of materials with ease. It can also execute various types of cuts, from straight lines to intricate shapes, making it ideal for custom countertop designs.
- User-Friendly Interface: The 17-inch touchscreen and industrial computer make it easy to control and monitor the machine, even for operators who are not tech-savvy. The machine also supports the import of files, which means you can easily download designs and start processing them immediately.
- Global Reach: With over 15 years of experience and 30 state-of-the-art production machines in its factory, this machine has been shipped to customers across Europe, the United States, Canada, South America, India, and Australia.
The 4+1 Axis CNC Bridge Saw offers an unmatched combination of precision, efficiency, and ease of use. Whether you’re a small business or a large-scale manufacturer, this machine will enhance your production capabilities, allowing you to deliver high-quality countertops that meet your clients‘ expectations. With features like an adjustable worktable, built-in drawing library, and vacuum-assisted plate handling, it’s easy to see why this machine is a popular choice among industry professionals.
With a strong commitment to innovation, expertise, and customer satisfaction, this machine not only meets but exceeds industry standards, making it the best choice for stone processing and countertop manufacturing.
