Product Description

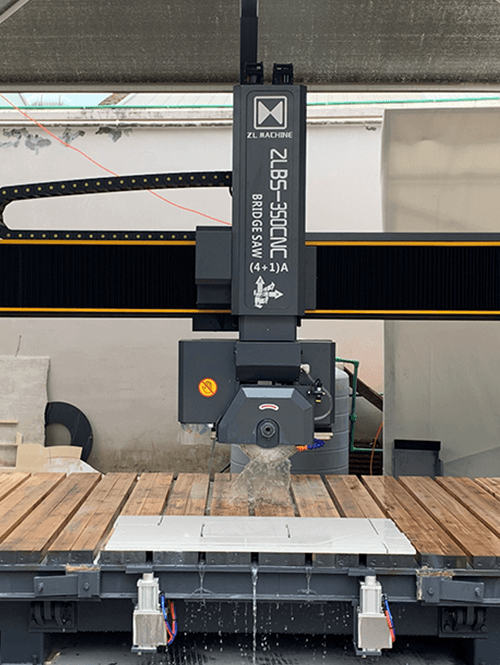

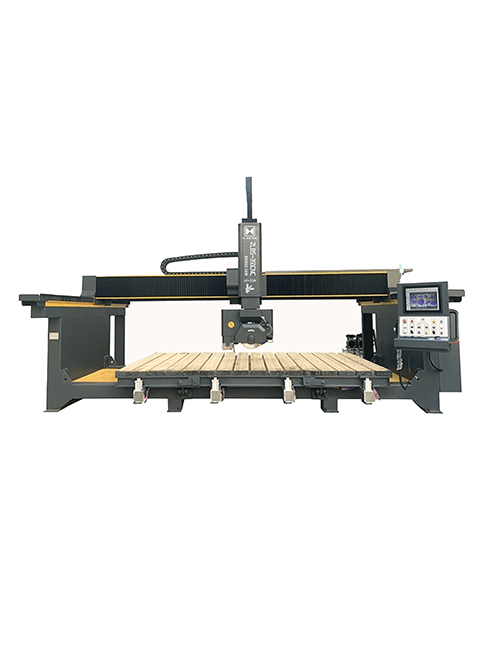

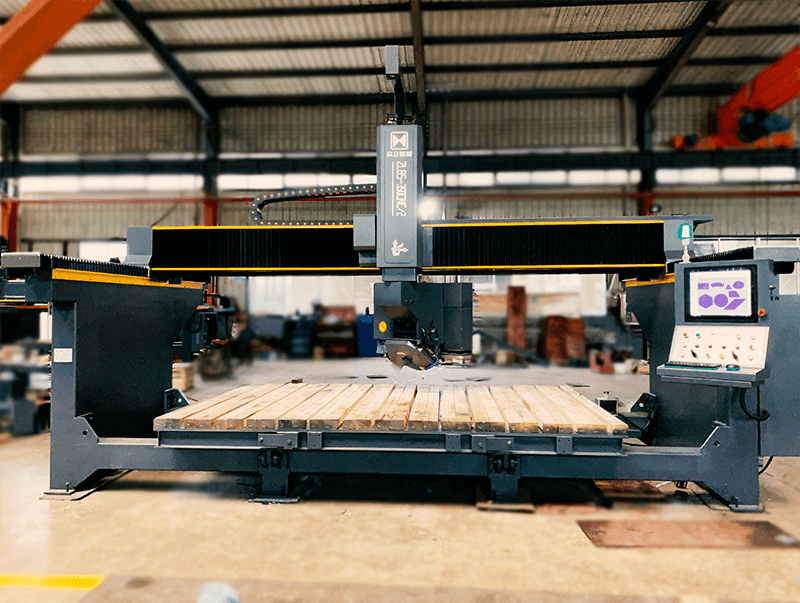

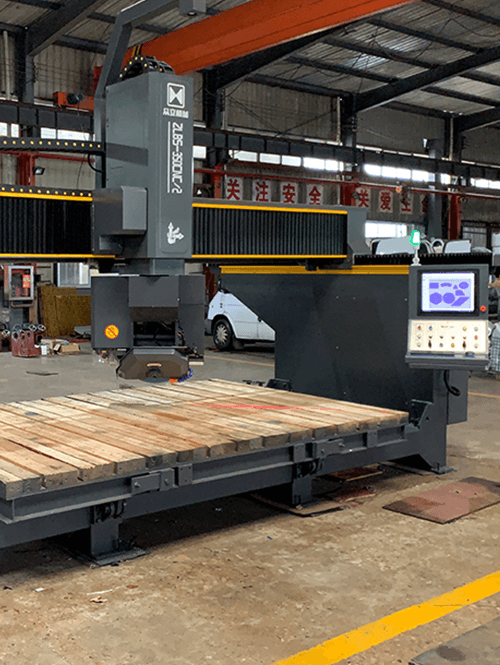

The 4+1 Axis CNC Bridge Saw (ZLBS‑350CNC) is a next‑generation smart cutting machine engineered for precision fabrication of marble, granite, quartz, ceramic, and sintered stone countertops. According to the technical document, the operator can “take a photo of the plate and put the layout of drawing on the plate in the photo, then start processing” — making the workflow extremely intuitive.
This machine handles straight cuts, chamfers, polygons, circles, ovals, L‑shapes, under‑hung sink cutouts, and complex countertop geometries. The program automatically generates cutting sequences and tool paths, and before milling, “the program will first control the cylinder to press the plate” for stability. Vacuum suction assists when knife paths overlap, ensuring safe slab separation.
Built for industrial performance, the ZLBS‑350CNC features a 15 kW main motor, 5.5 kW spindle motor (24,000 RPM), 360° head rotation, 45° tilting, and an 85° tilting worktable for easy loading. The machine ships with an industrial computer, 17″ touchscreen, DXF import capability, and a built‑in shape library.
Key Features
- 4+1 Axis CNC smart cutting system
- Camera‑assisted plate positioning for accurate layout
- Automatic sequence & tool‑path generation

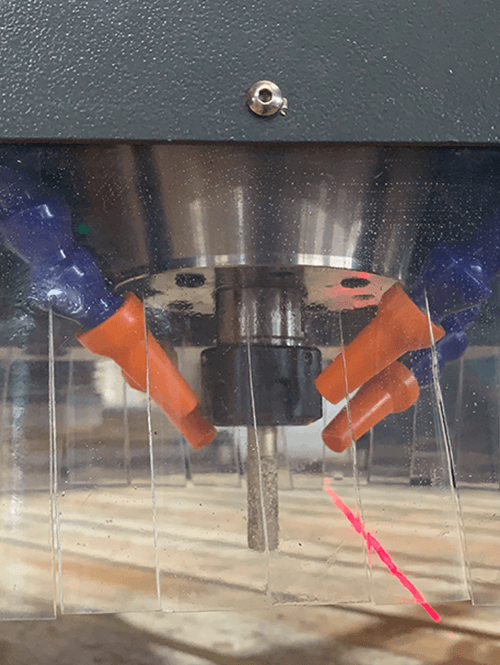

- Milling head for sink holes, faucet holes, inner angles
- Cylinders press the slab during milling for stability

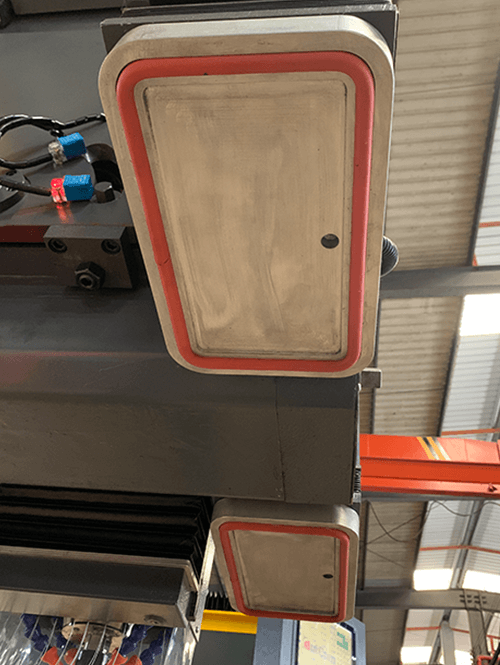

- Vacuum suction lifter for moving slabs and separating overlapping cuts
- 360° head rotation and 0–45° head tilting
- Worktable tilts up to 85° for easy loading/unloading
- Industrial computer + 17″ touchscreen

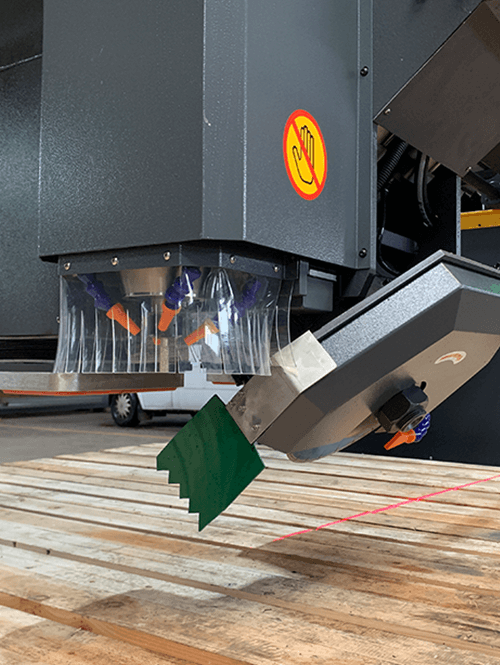

- Automatic tool setting gauge (blade diameter probe)
- DXF file import + built‑in shape library
- Compact design for easy transport — main body fits in a high‑cube container
- OEM service available

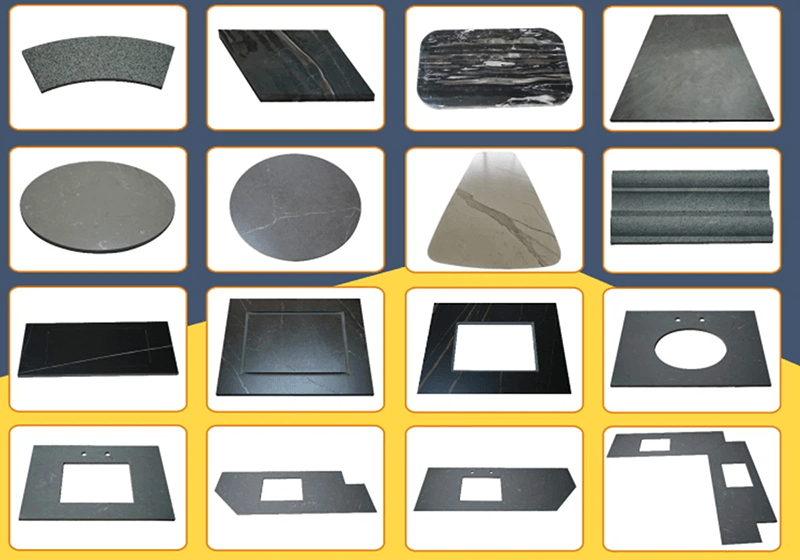

Applications
- Countertop fabrication (marble, granite, quartz, sintered stone)
- Sink cutouts, faucet holes, inner‑corner milling
- Straight cuts, chamfers, polygons, circles, ovals
- L‑shaped and under‑hung countertop processing
- Precision slab cutting for workshops and factories
- Dust‑free countertop installation workflows
Technical Specifications
| Specification | Value |
|---|---|
| Model | ZLBS‑350CNC (4+1 Axis) |
| Worktable Size | 3500 × 2000 mm |
| Max Processing Size | 3500 × 2000 × 65 mm |
| Blade Diameter | Ø350 mm |
| Main Motor Power | 15 kW |
| Spindle Motor | 5.5 kW (24,000 RPM) |
| Total Power | 25–25.5 kW |
| Head Rotation | 0–360° |
| Head Tilting | 0° / 45° |
| Table Tilting | 0–85° |
| Water Consumption | 2 m³/h |
| Total Weight | 4.5–4.6 tons |
| Machine Dimensions | 5750 × 3260 × 3000 mm (camera height up to 3800 mm) |
| Shipment Dimensions | 5750 × 3000 × 2500 mm |
| Delivery Method | Main part delivered as whole; fits in high‑cube container |
