SUPREME STONE SAW

SUPREME STONE SAW

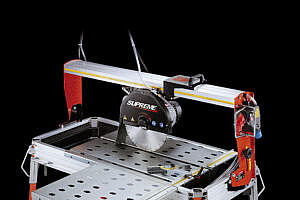

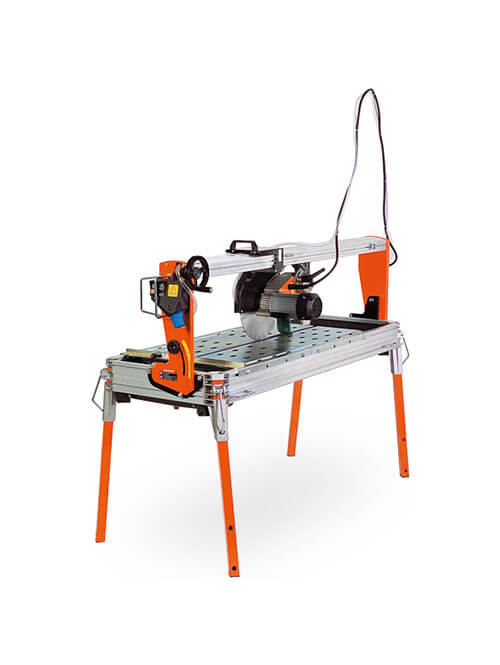

SUPREME is a bridge saw ideal for cutting natural stones, granite and marble slabs.
It makes cuts moving forward manually the engine group.
It is built to work with diamond disk Ø300 mm.
Kit wheels are optional.

Equipped with:
– Single & 3 phase engine 230V 50Hz up to 3.5 Hp with thermal and amperometrical protection
– Switch with release coil
– Overheat protection with manual reset
– Sliding cutting head and tilting engine

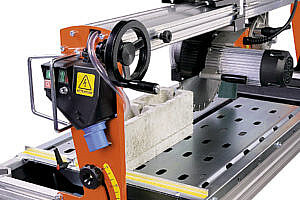

– Cutting progress system with hand wheel
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S3

Disk Ø 300 not included.

Available in:
SUPREME 85 cm – 1Phase
SUPREME 120 cm – 1Phase
SUPREME 120 cm – 3Phase
SUPREME 150 cm – 1Phase
SUPREME 150 cm – 3Phase

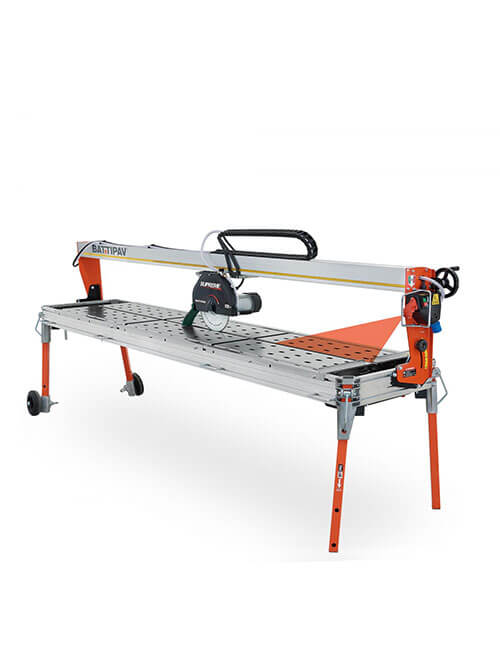

SUPREME INFINITY 260S 260 cm – 3Phase

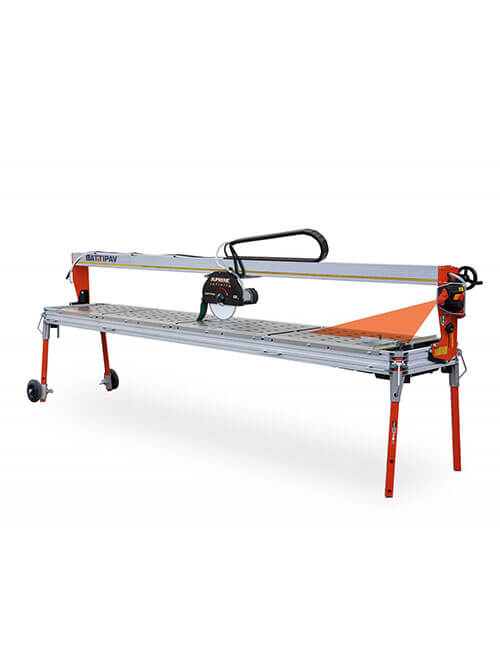

SUPREME INFINITY 320S 320 cm – 3Phase

Product Documents

Information

Description

STRUCTURE


Aluminium draw-plate to get the maximum of rigidity and lightness at the same time.
BRIDGE
The rail is in extrusion of aluminium at high resistance to the torsional stress.
It’s equipped with interchangeable stainless steel bearings-tracks.
Absolute cutting precision.
SCALE MEASURE
Millimeters graduated scale for a fast execution of the cuts in series.
GONIOMETER FENCE
A professional adjustable goniometer fence is included.
SIDE TABLE
The extension side table, made in galvanized steel, is optional and can be mounted in both the sides of the machine. It allows the cut of big sizes.


CARRIAGE


The carriage engine group slides on the rail by means 8 ball-bearings, of which 4 works always in perpendicular way respect to the rail. So doing the sliding is very fast and precise.


POSITION 45° ANGLE CUTS


Position 45° angle cuts.
The wiring of the cables is integrated inside the rail to avoid they interfere in the cutting area. Powerful engine up to 3.5 Hp with thermal and amperometrical protection.

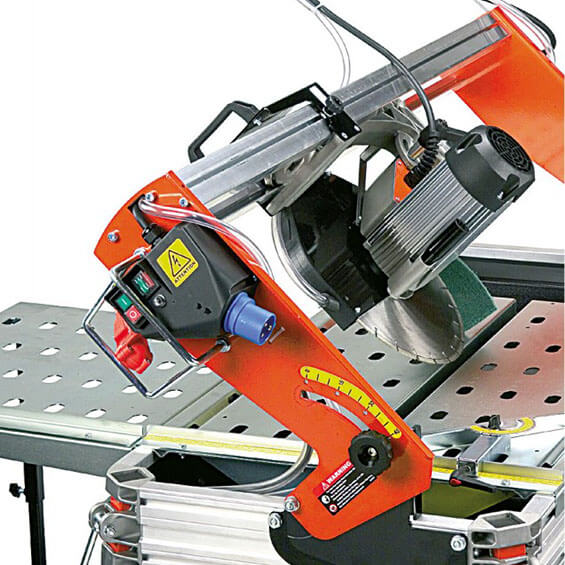

CUTTING DEPTH


The adjustment of the cutting depth occurs by means the locking of the tilting of the engine group. A simple and easy graduated scale measures directly the cutting depth.

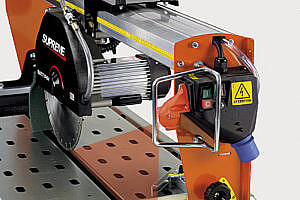

CONTROL BOARD


The control board includes:
– switch with release coil
– overheat protection with manual reset in the event of the disk jamming
– red light for signalling the presence to connection net
– green light for signalling machine on function
– laser instrument for the maximum cutting precision (optional in standard version)
– Plug industrial type


WORKING TABLE


The working table, of large dimension (620 mm.), is made in galvanized steel.
The water tank, realized in abs material, crash and consumption proof.
– It’s easy to clean and realized to divide the cutting rubble from the recycling water’s area.
– Water recycling pump type S2 included.
