Product Description

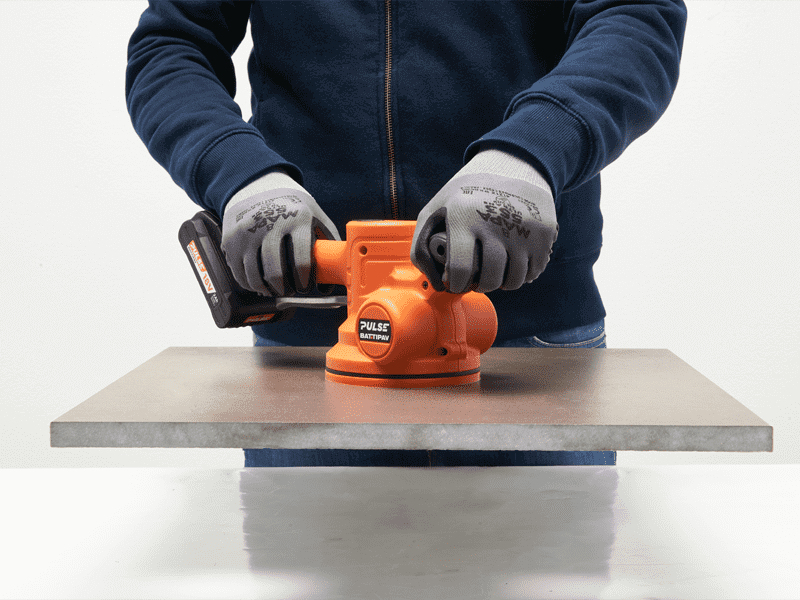

The Battipav PULSE is a professional‑grade, battery‑powered suction‑cup vibrator engineered for installing large‑format tiles and slabs with maximum precision. Its powerful vibration system expels trapped air and guarantees full adhesive contact, ensuring long‑lasting, defect‑free installation.
According to the manufacturer’s documentation, PULSE includes a flexible head for perfect guidance and a suction cup with a practical lever for fast “Pick & Place” handling . It supports tiles up to 25 kg per lift . The vibration intensity is controlled through a 5‑position rotary variator, activated by a white rubberized button on the handle .
The kit includes an angular beating plate, inspired by Battipav’s historic MiniVibro from the 1970s, designed for improved access into corners and edges . A plastic storage case, heavy‑duty battery, charger, and extended working plate are all included in the core set .
Key Features
- Professional battery‑powered tile vibrator
- Suction cup with fast “Pick & Place” lever
- Flexible head for smooth guidance
- 5 adjustable vibration speeds (500–12,000 RPM)

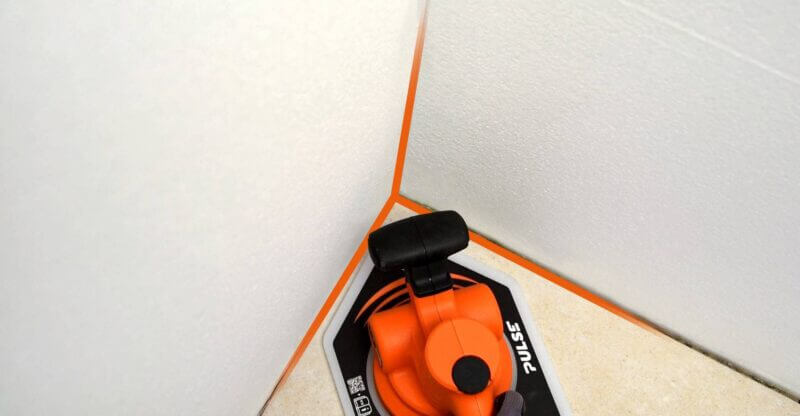

- Angular beating plate for corner access
- Extending working surface plate included
- Plastic storage/transport case included
- Maximum tile weight: 25 kg
- Designed for large‑format tiles and slabs
What’s Included (Core Set)
(All items confirmed from the PDF)
- 1× PULSE electric tile vibrator
- 1× Heavy‑duty 18V battery
- 1× Universal charger
- 1× Angular beating plate
- 1× Plastic storage case
- 1× Extending working surface plate
Technical Specifications
| Specification | Value |
|---|---|
| Voltage | 18V DC |
| Current Intensity | 2 Ah |
| Power Available | 36 Wh |
| Service Type | Continuous |
| RPM Range | 500–12,000 RPM |
| RPM Regulation | 5‑position electronic rotary variator |
| Drive Type | Surface flush button, IP65 protection |
| Machine Weight | 1202 g (without battery) |
| Battery Weight | 384 g |
| Suction Cup Diameter | 130 mm (7 mm thick) |
| Angular Plate Size | 200 × 300 × 80 mm |
(All values sourced directly from the attached document.)
Applications
- Large‑format tile installation
- Slab placement and leveling
- Air‑expulsion for perfect adhesive bonding
- Corner and edge vibration using angular plate
- Professional tiling, flooring, and finishing work
