PRIME BRIDGE STONE SAW

PRIME BRIDGE STONE SAW

PRIME is a bridge saw ideal for the building sector. New design with vanguard technical innovation, strong and precise, it is suitable for cutting bricks, stones, concrete blocks, granite, marble, slabs.
It makes cuts moving forward manually the engine group.
It is built to work with diamond disk Ø350 mm.
Kit wheels are optional.

Equipped with:
– 3 phase engine upto 4.5 Hp with thermal and amperometrical protection
– Switch with release coil
– Overheat protection with manual reset
– Sliding cutting head and tilting engine
– Cutting progress system with hand wheel
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S3

Water cooled
Disk Ø 350 mm not included

Available in:
– PRIME INFINITY 150 CM – 3Phase
– PRIME INFINITY 200 CM – 3Phase

Product Documents

Information

Description

STRUCTURE

Alluminium draw-plate to get the maximum of rigidity and lightness at the same time.
BRIDGE
The rail is in extrusion of aluminium at high resistance to the torsional stress.
It’s equipped with interchangeable stainless steel bearings-tracks.
Absolute cutting precision.
SCALE MEASURE
Millimitres graduated scale for a fast execution of the cuts in series.
GONIOMETER FENCE
A professional adjustable goniometer fence is included.
SIDE TABLE
The extension side table, made in galvanized steel, is optional and can be mounted in both the sides of the machine. It allows the cut of big sizes.


CARRIAGE

The carriage engine group slides on the rail by means 8 ball-bearings, of which 4 works always in perpendicular way respect to the rail. So doing the sliding is very fast and precise.

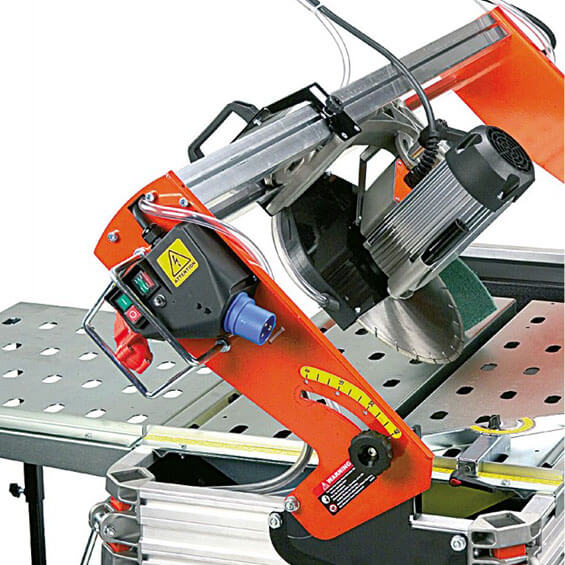

POSITION 45° ANGLE CUTS

Position 45° angle cuts.
The wiring of the cables is integrated inside the rail to avoid they interfere in the cutting area. Powerful engine 4.5 Hp with thermal and amperometrical protection.


CUTTING DEPTH

The adjustment of the cutting depth occurs by means the locking of the tilting of the engine group. A simple and easy graduated scale measures directly the cutting depth.


WORKING TABLE

The working table, of large dimension (620 mm.), is made in galvanized steel.
The water tank, realized in abs material, crash and consumption proof.
– It’s easy to clean and realized to divide the cutting rubble from the recycling water’s area.
– Water recycling pump type S3 included.
