Factory Armor Joints

The armor joint is a classic design that is practical in many projects due to its strength and versatility. It is suitable for floor thickness of 100~300mm to 300mm, and the joint opening can reach 20mm. It can also be designed and supplied according to the customer’s plate thickness and joint opening. Different materials are also available for MSARJ joints, such as black steel, hot-rolled galvanized steel, and stainless steel. The MSARJ includes not only all standard products, but also crossover styles such as four-way, three-way, “L” bi-directional, and rounded corner segments. Uses: Mainly used in industrial building construction joints, transfer channels, factory floors, etc.

Category: Tags: , , Brand: ,

Description

Product Description:

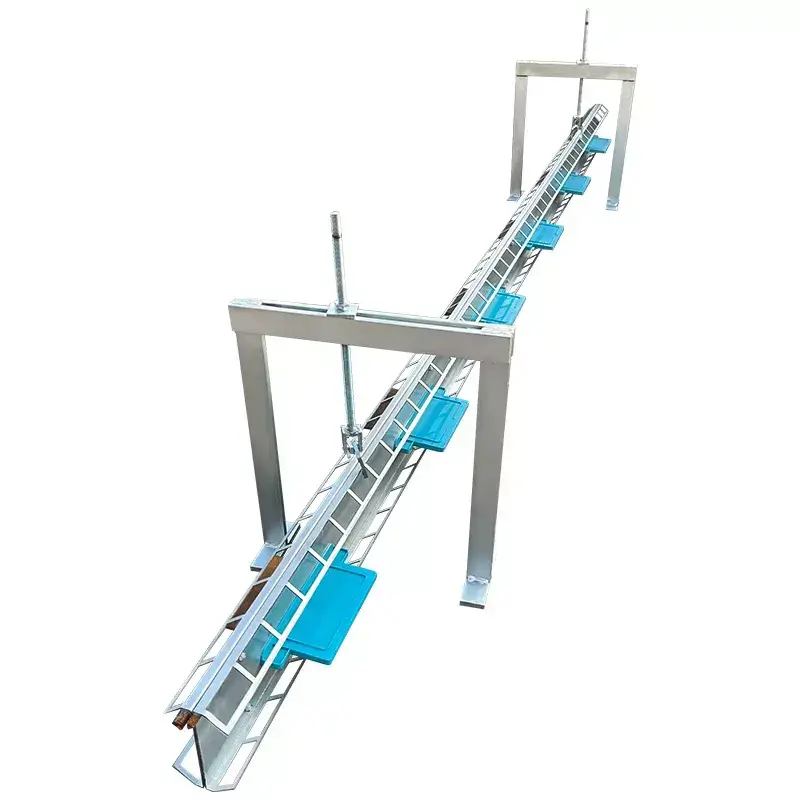

MSARJBM type floor armor joint is an economical design and can be used in many projects. The top triangular edge of this joint allows it to give extra support when vehicle wheels pass. The twin full-height divider plates, specially shaped at the dowel point, add to its strength and rigidity.  It is ideal for floor slab thickness from 100mm to 300mm and joint opening up to 20mm. Meishuo can also design and supply the joints according to clients’ slab thickness and joint opening. Different materials are also available for MSARJBM joints such as hot dip galvanized steel and stainless steel. MSARJBM joints are not only includes all standard products but also intersection joints such as 4-way section, 3-way section, and “L” 2-way section.

Application: mainly used for industrial building construction joint, transfer aisle and threshold position.

Note: Compressible foam can be added in the middle of the steel plate for outdoor and expansion gap using.

Product parameters:

MSARJBM   Type Joint Height   H(mm) Dowel Plate Dowel Centers C/C   (mm) Joint Length   L(mm) Suitable slab   Thickness(mm)
MSARJBM6-90-3000 90 ARJD6 (6mm） 500 3000 100～120
MSARJBM6-115-3000 115 ARJD6 (6mm） 500 3000 120～145
MSARJBM6-135-3000 135 ARJD6 (6mm） 500 3000 145～170
MSARJBM6-160-3000 160 ARJD6 (6mm） 500 3000 170～195
MSARJBM6-180-3000 180 ARJD6 (6mm） 600 3000 195～225
MSARJBM6-215-3000 215 ARJD6 (6mm） 600 3000 225～250
MSARJBM6-230-3000 230 ARJD6 (6mm） 600 3000 245～270
MSARJBM6-245-3000 245 ARJD6 (6mm） 600 3000 260～300
MSARJBM10-135-3000 135 ARJD10 (10mm） 500 3000 145～170
MSARJBM10-160-3000 160 ARJD10 (10mm） 500 3000 170～195
MSARJBM10-180-3000 180 ARJD10 (10mm） 600 3000 195～225
MSARJBM10-215-3000 215 ARJD10 (10mm） 600 3000 225～250
MSARJBM10-230-3000 230 ARJD10 (10mm） 600 3000 245～270
MSARJBM10-245-3000 245 ARJD10 (10mm） 600 3000 260～300

Note: Please consult for details about the specific height corresponding to the thickness of the floor.
